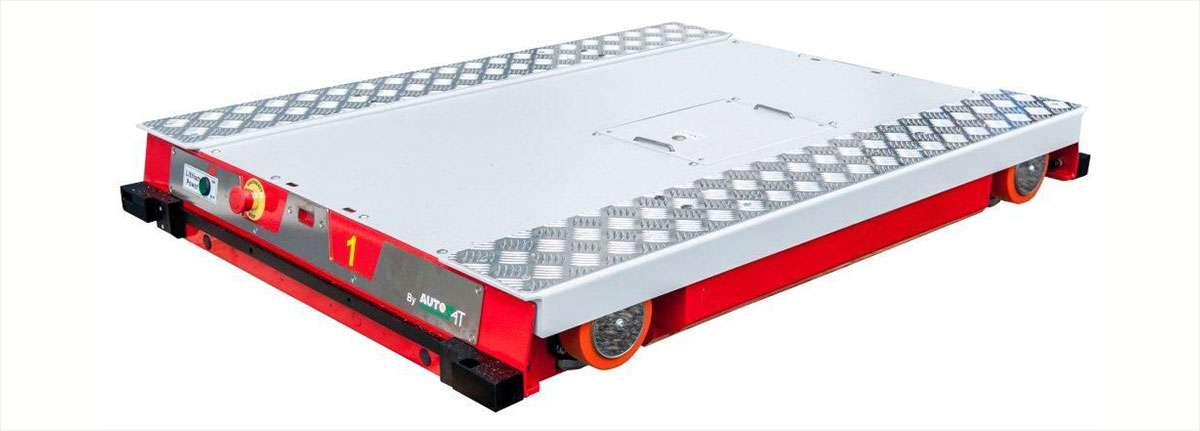

Pallet Shuttle System
First in? Last in? Either way, its FAST
Operating at 35 metres per minute, the Pallet Shuttle System is one of the most efficient bulk storage solutions on the market.
It’s ability to combine different pallet types, located at varying distances, with storage lanes in excess of 50m, plus the added option to work either as First in, First out (FIFO) or as Last in, First out (LIFO) makes it a great alternative to conventional pallet racking configurations.
This high-density solution can significantly reduce the size of warehouse required and ultimately, reduce operational costs. Ideal for those whose storage requirements equate to bulk storage with a reduced SKU range.
Why the Pallet Shuttle System is so good
This system eliminates the need for access lanes, reducing the overall storage area needed in a warehouse.
Once installed, the system can be used for both mixed and bulk storage and is equally suited to both LIFO and FIFO operations, removing many of the stocking limitations associated with Drive-in racking.
With the Pallet Shuttle System, you can improve the efficiency of your warehouse operations, with Return on Investment (RoI) typically being achieved over two years as opposed to four-to-five for alternative product types.
|Racking System||*Warehouse 100m x 100m x 9m with 1.1m high Euro
|Standard Wide Aisle Racking||20,000 pallets|
|Pallet-Flow System||36,000 pallets|
|Pallet Shuttle System||46,000 pallets|
*example of the number of pallets that can be stored with different racking systems in a fixed size warehouse.
Fast, Efficient, Flexible
The Pallet Shuttle system increases the throughput of warehouse operations, with the option to add additional shuttles to the operation when market peaks or ongoing growth is experienced. This flexibility allows for better operational planning and smooth management of peaks - without the need for additional resource.
As the shuttles operate using an on-board Lithium Ion battery, operating range is increased and charging times are reduced – resulting in low energy cost requirements against significantly improved pallet movements.
Offering measurable workplace safety benefits, Pallet Shuttle enables your business to become more risk averse as the system reduces the hazard level of damage to the equipment and/or product and, most importantly, risk to operating staff.
Need more convincing?
Here’s just a few of Pallet Shuttles many benefits:
The Pallet Shuttle System is controlled by the operator via a lightweight, hand held radio control unit. The simple to use control includes features such as:
- Automatic or Manual control function, so you can adjust operation of the shuttle according to the goods stored
- Information is relayed from the shuttle and shown on the handset display
- Lightweight, rechargeable, radio control handset
- Easy operator usage, shuttle can be easily controlled from inside the truck
- A handset can control up to 8 shuttles
- Continuous operational in and out mode is available
- Water and dust repellent in accordance with IP65 standards
What our customers say
Our partnership approach is based on mutual trust and confidence. The high-quality solutions we develop in consultation with our customers make a genuine contribution to improving their business by providing a first-rate working environment.
“The biggest advantage we have achieved with the Shuttle system is space utilization. Another is that we only need 1 truck for handling. The shuttle picks up and brings pallets to and from picking opening.” -
Joacim Boivie, Outl1.se. Arc E-Commerce
“This is the first shuttle installation in Denmark and it’s had a really positive impact on our business. The pay-back time for our investment is approximately three years, so we are happy with the installations in terms of how it has transformed our business and the short time in which it will pay for itself.” -
Jørgen Krenzen Johansen, COO, Lynddahl, Denmark.
“We’re really pleased with the solution. Thanks to Constructor, we have the optimum number of pallet spaces in a safe and efficient warehousing system that overcomes several logistical challenges in innovative and insightful ways.” -
Ellen Rognerud, Warehouse Manager, Telway.
