P90 Pallet Racking Technical Specifications
Standards-compliant. Tested. For continuous industrial operation.
Engineered load performance for heavy-duty pallet storage and long-term operational safety.
Technical Specifications for the Dexion P90 Profile Platform
The Dexion P90 pallet racking platform is engineered for high-load industrial storage applications, supporting everything from standard warehouse operations to retrofit, expansion and automated warehouse environments. Built on a common profile platform, the system enables scalable warehouse development while maintaining structural reliability and long-term operational performance.
- Bay widths: 1,800 / 2,200 / 2,700 / 3,300 / 3,600 mm + special dimensions
- Racking depth: 800 mm / 1,100 mm + special dimensions
- We offer upright widths from 90, 100, 120 and 140 mm
- Beam load: Up to 5 tonnes per level
- Bay load: Up to 30 tonnes
- Suitable for cold and freezer storage (type-dependent)
- Standards-compliant for continuous industrial operation
- Principles for structural design according to EN 15512
- Structural design for seismic zones according to EN 1998-1

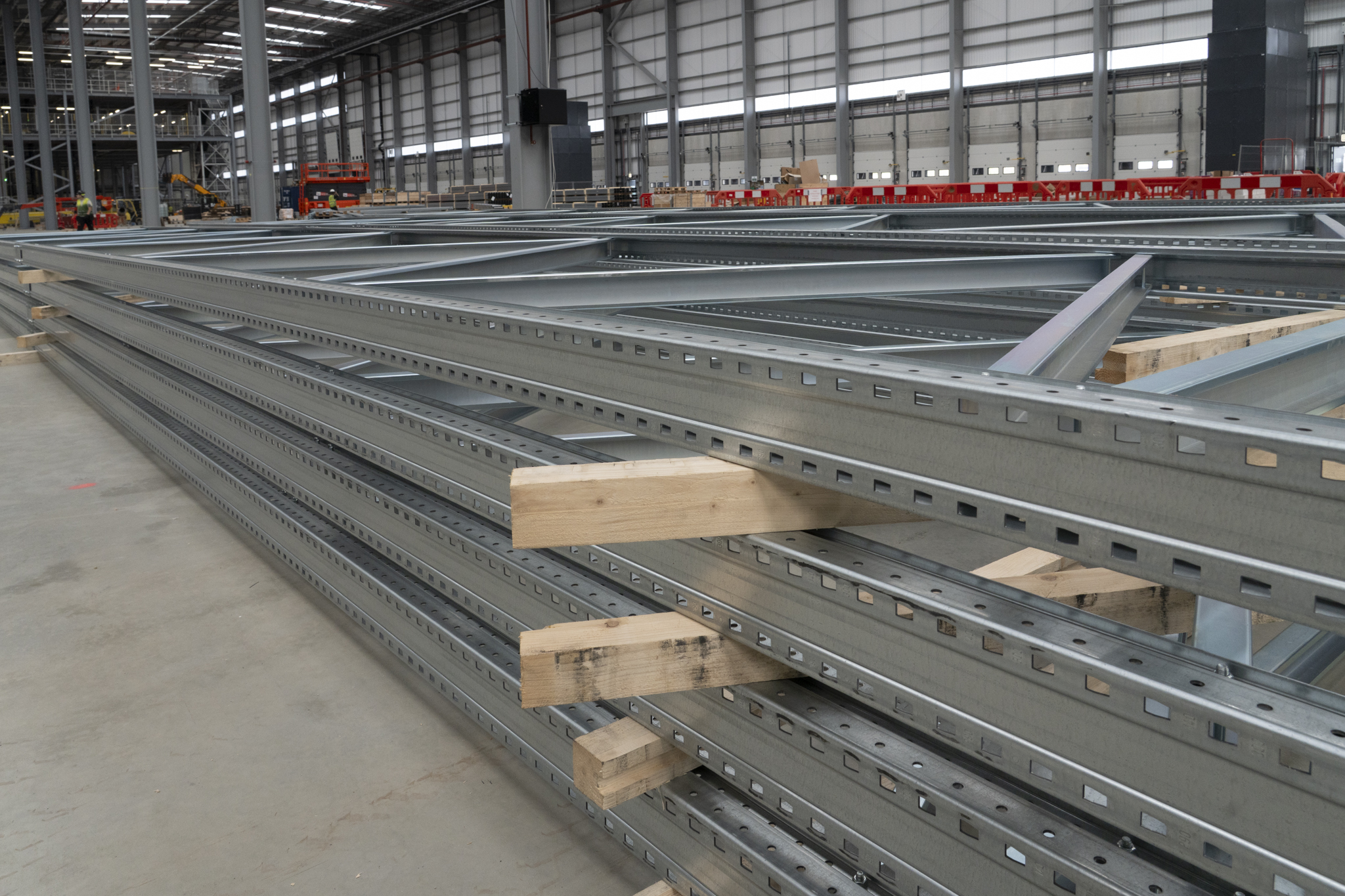

Core Structural Components of a Pallet Racking System
Industrial pallet racking systems are built from multiple structural components, designed to work together to support pallet loads safely, efficiently and at large scales. Every component plays a critical role in warehouse performance, structural stability and operational flexibility.

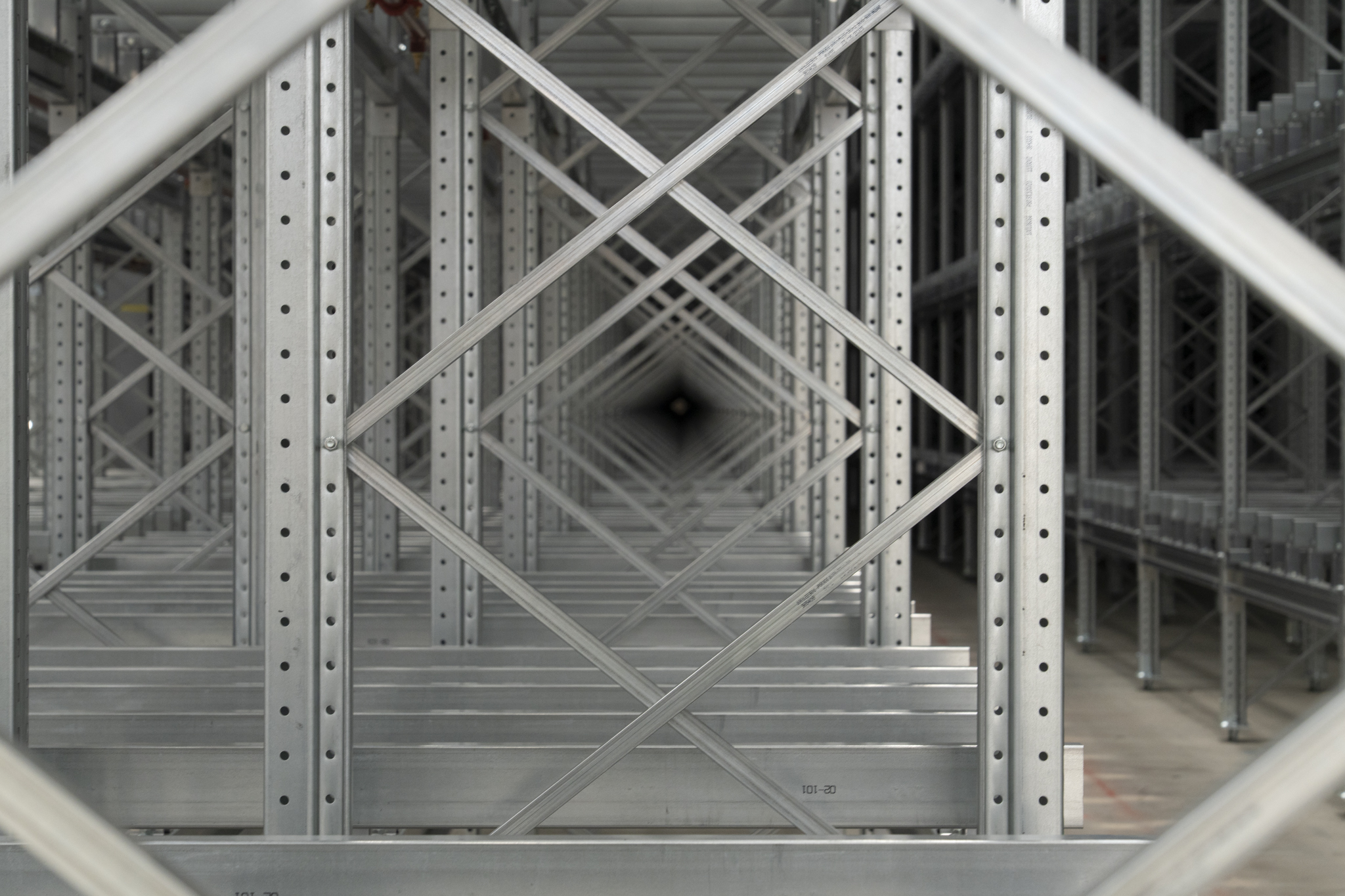

Stability & Safety in Every Frame
Structural bracing engineered for long-term warehouse stability
Closed bracing profiles help maintain rack stability under dynamic warehouse loads while improving structural rigidity and long-term system durability.
This reduces deformation, improves load distribution, and supports safe operation across demanding warehouse environments.
- Higher rigidity and load capacity through torsion-resistant closed profiles
- Reduced deformation and less twisting of upright frames under load
- Lower maintenance effort due to impact-resistant and dimensionally stable design
- Improved safety with smooth surfaces and no sharp edges
- Hygienic design without dust accumulation, suitable for sensitive areas
- Galvanized or painted options for corrosion protection
- Reliable structural design according to EN 15512

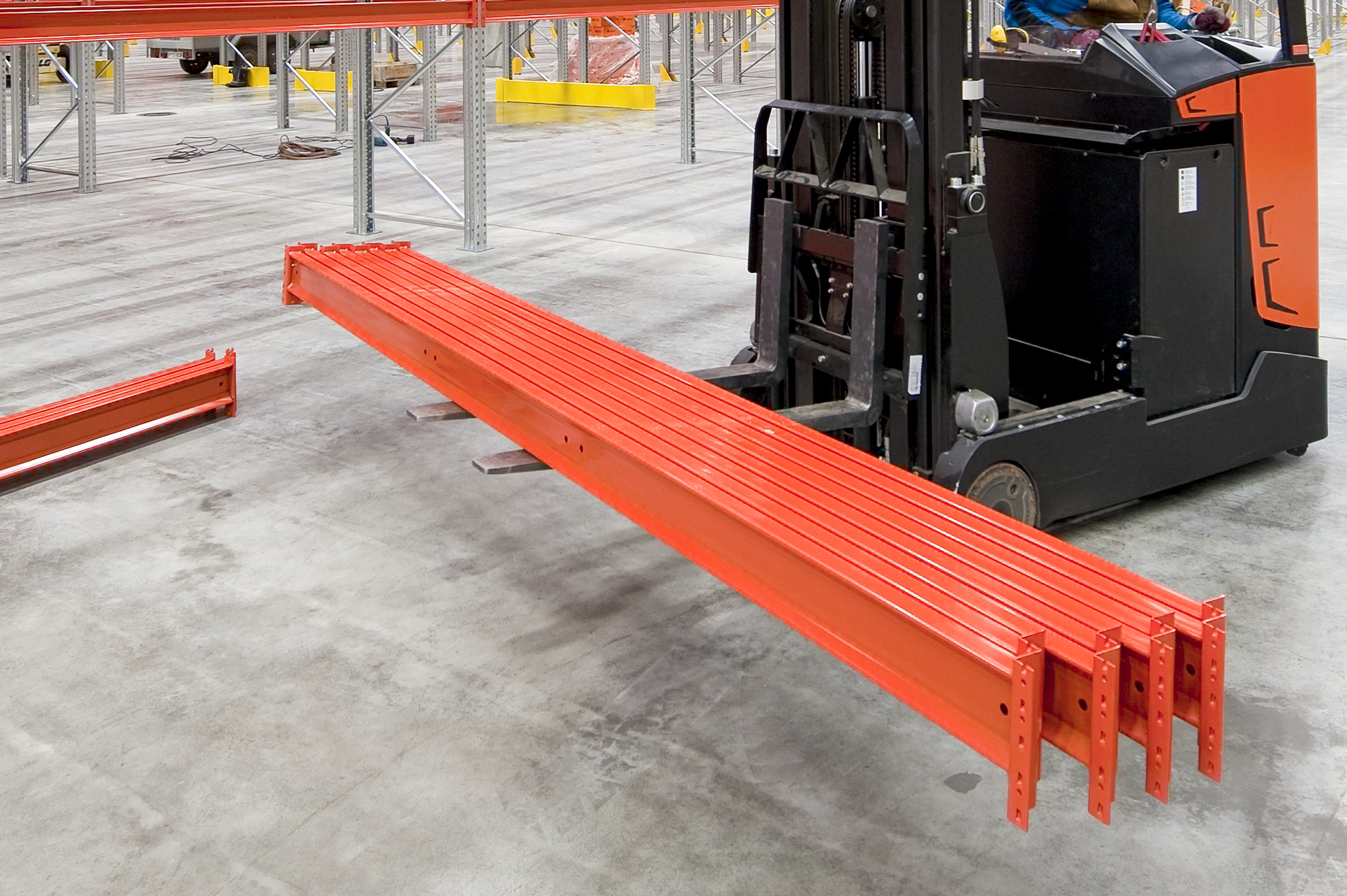

Beams: The Right Profile For Every Load & Application
Why Beam configurations matter: Beam selection influences pallet support, load distribution, structural performance and compatibility with different warehouse applications. Different beam profiles are designed to support varying load conditions, storage environments and operational requirements.
Box Beam
Box beams are the standard load-bearing solution within the P90 system, designed for a wide range of warehouse conditions. Available as hot-dip galvanised or painted, they offer a flexible combination of corrosion protection, durability and surface finish depending on the operating environment.
- Galvanised option for long-term corrosion protection
- Painted option in RAL colours for visibility and layout structuring
- Additional coatings available for demanding conditions
- Designed for high-load industrial warehouse environments
- Beam heights from 60mm to 160mm
Open Beam
Open beams are designed for warehouse applications requiring additional decking, support bars or specialised load carriers. Their open profile enables flexible integration with customised pallet support configurations and non-standard storage requirements.
- Open profile for integration of decking and support elements
- Suitable for non-standard pallets and special load carriers
- Flexible configuration within the P90 system
- Enables customised load support solutions
- Beam heights: 50mm or 75mm
I-Beam Silverline
The I-Beam Silverline profile is engineered for defined load applications needing efficient load distribution and structural reliablilty. Its optimised profile geometry supports stable pallet handling while maintaining material efficiency across predictable load conditions.
- Economical beam solution for defined load scenarios
- I‑profile geometry optimised for distributed loads
- Efficient material usage compared to closed profiles
- Suitable for applications with predictable load conditions
- Beam heights: 100mm, 125mm, 140mm
Custom beam profiles for specialised applications
Step Beam
For P90 only with adapted connectors; rarely used in standard P90 applications
Sigma Beam
Racking with chipboard and steel decking
IPE Beam
Very heavy special constructions
The beam is the load-bearing element between the frames. Not every load requires the same solution. Dexion manufactures all beam types in-house and offers the right profile for every application. Beam lengths can be configured from 500 mm to 5,000 mm, subject to structural verification.
