Fully automatic stacking and destacking.
Choose a PALOMAT® Greenline if you plan to both stack and destack single pallets and wish to use only electricity as the power source.
PALOMAT® Greenline is completely AC operated.
The PALOMAT® range ensures efficient and safe pallet flow without physical strain on your staff.

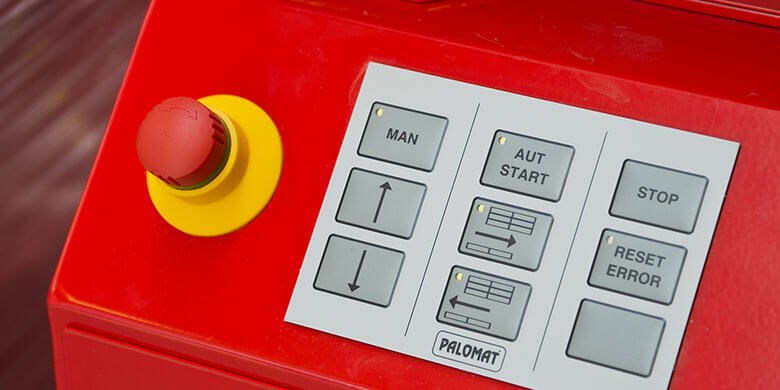

With the use of a simple pallet truck, the pallets are placed into the dispenser where they are then efficiently and automatically stacked. A user-friendly touch panel on the side is used to access various functions.
The PALOMAT® Greenline is also available for handling pallets in cold rooms with temperatures as low as –25°C / –13°F (Only available for 15 pallets / 500 kg.).
You can place it anywhere with an available AC 230V outlet. This will immediately give you an efficient and more flexible pallet handling – if your pallet flow changes, then it is easy to reposition the PALOMAT® Greenline to a new location.

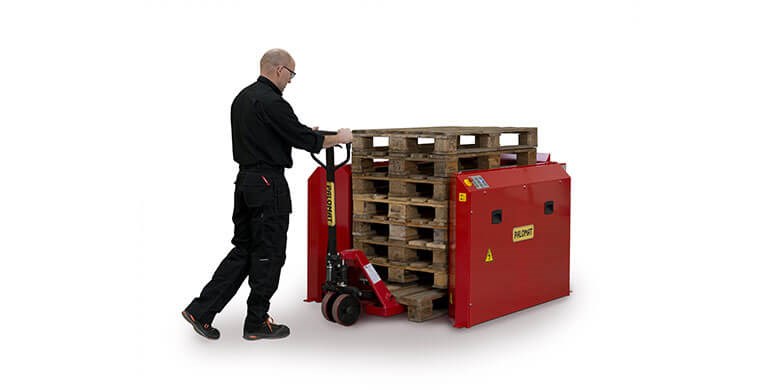

Pallets can be inserted and picked up using a hand pallet truck, electric stacker or a full-size forklift truck. All pallets are handled at floor level.
Article no. 152001
- Pallet size L x W x H (mm): 1200x800x150
- Lifting capacity/No. of pallets: 500 kg/ 15
- Machine dimensions L x W x H (mm): 1520x1340x955/2350*
Article no. 152002
- Pallet size L x W x H (mm): 1200x1000x150
- Lifting capacity/No. of pallets: 500 kg/ 15
- Machine dimensions L x W x H (mm): 1520x1540x955/2350*
Article no. 152101
- Pallet size L x W x H (mm): 1200x800x150
- Lifting capacity/No. of pallets: 700 kg/ 25
- Machine dimensions L x W x H (mm): 1520x1340x3750**
Article no. 152102
- Pallet size L x W x H (mm): 1200x1000x150
- Lifting capacity/No. of pallets: 700 kg/ 25
- Machine dimensions L x W x H (mm): 1520x1540x3750**
* Incl. safety frame for 15 pallets
** Incl. safety frame for 25 pallets with gate for handling more than 15 pallets.
