Safety Inserts

Safety Inserts

To support pallets 600 x 800 mm (= half EURO pallet) and 800x1200mm (EURO pallet).

The spacers positioned in down-aisle direction are designed to provide support for unbound or damaged pallets.

The guard is not designed as a safety net to collect loose boxes or cartons that may fall from a pallet.

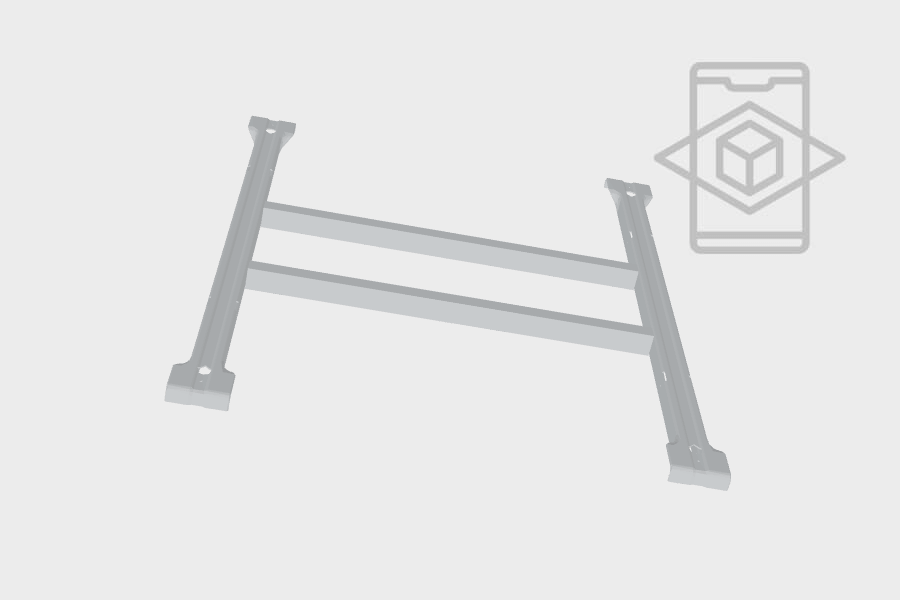

Mounted Safety Insert (Not Welded)

Load capacity

  • Maximum load per kit = 1000 kg

Finish

  • Galvanised

To be used on box beams.

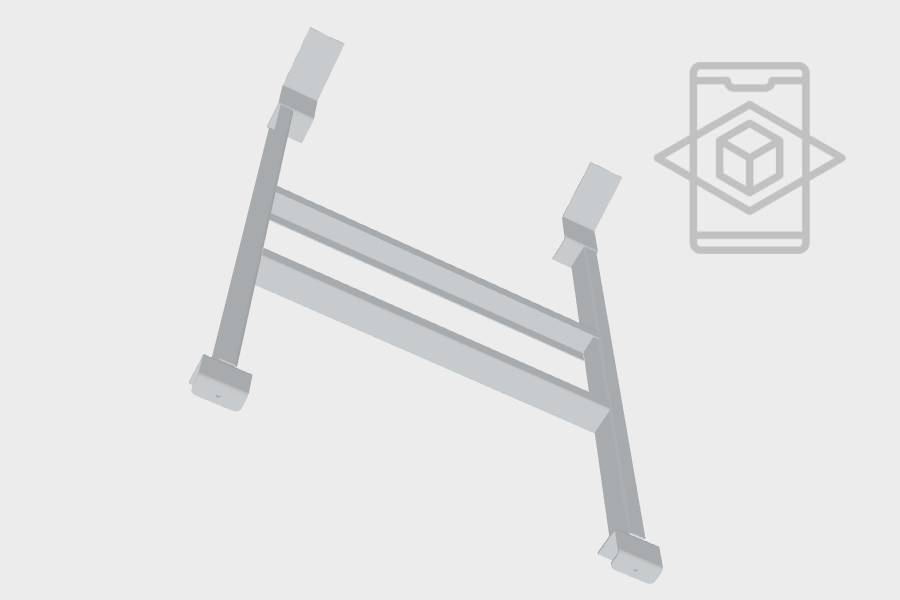

Safety Insert With Backstop (Welded)

Load Capacity

  • 1400kg UDL - if the Half Pallets are supported also by the racking beams (half of the loads to be transmitted directly to the beams)
  • 700kg UDL - if the Pallet is supported only by the Half Pallet Support.
  • This Half Pallet Inserts have an angled back stopper to guide the pallet when placed over.

Finish

  • The standard finish is RAL9002

To be used only for BX50 Beams.

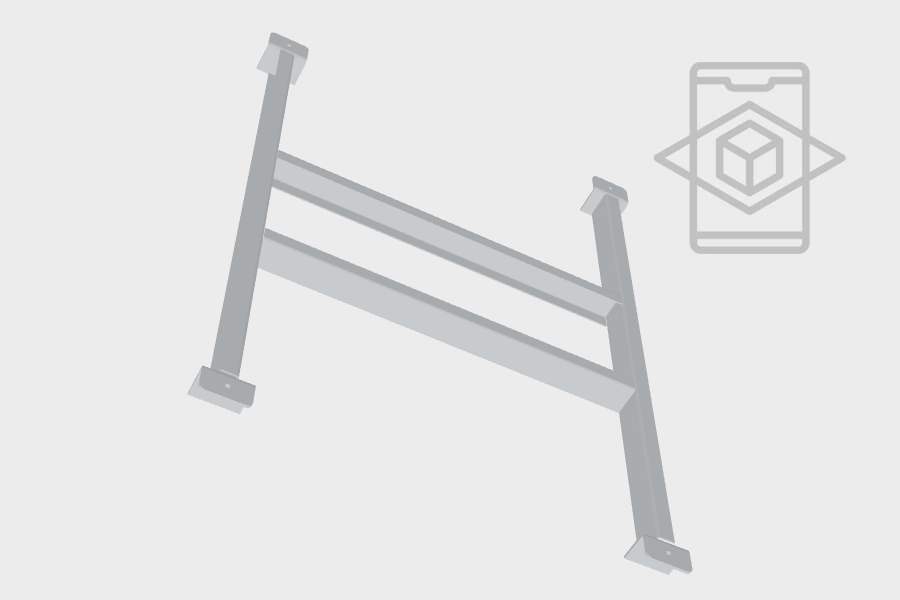

L-hook Safety Insert (Welded)

Load Capacity

  • 1400kg UDL - if the Half Pallets are supported also by the racking beams (half of the loads to be transmitted directly to the beams)
  • 700kg UDL - if the Pallet is supported only by the Half Pallet Support.
  • This Half Pallet Inserts have the front and back hooks "L" shaped.

Finish

  • The standard finish is RAL9002

To be used only for BX50 Beams.

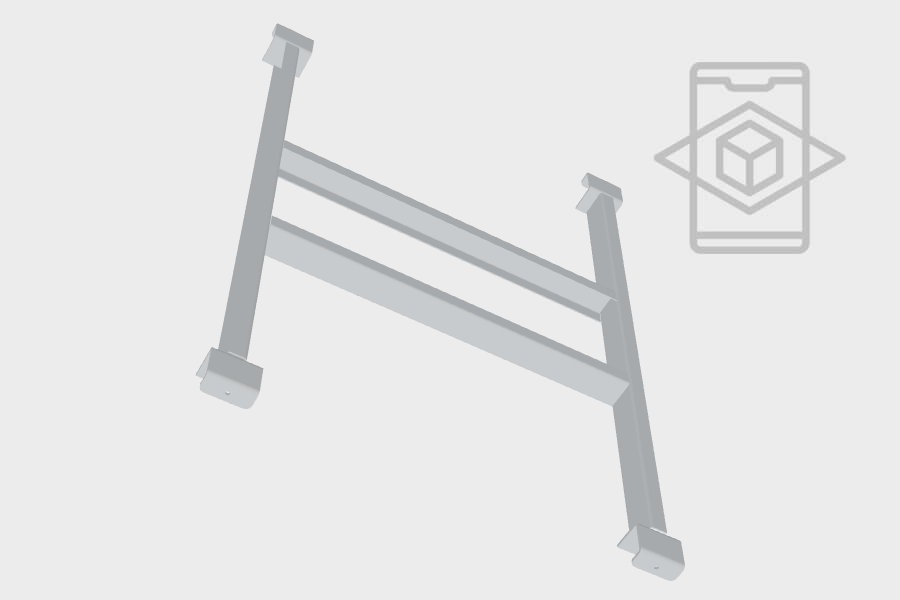

U-hook Safety Insert (Welded)

Load Capacity

  • 1400kg UDL - if the Half Pallets are supported also by the racking beams (half of the loads to be transmitted directly to the beams)
  • 700kg UDL - if the Pallet is supported only by the Half Pallet Support.

Finish

  • The standard finish is RAL9002

This Half Pallet Inserts have the back hooks with a bended edge that follows the "I" profile of the beam for securing the Half Pallet Support against accidental lifting.
