COMPACT MODULES CML

Compact Modules For Small Parts Between Pallet Racks

When boxes and components disappear at the back of deep shelves, compact modules pull the whole shelf out to the operator.

Plan your small-parts zone See the models
880 mm Module width
70 or 100% Shelf extension
Fixed or mobile CML and CML-ME
PULL-OUT STORAGE FOR SMALL PARTS

Small-Parts Storage in a Compact Footprint

Compact Modules are freestanding pull-out modules for boxes, containers and small parts. At 880 mm wide they fit between standard pallet racking. Each shelf carries an 800 × 1,200 mm load surface and extends 70 or 100% towards the operator.

TYPICAL CHALLENGES

Where Small-Parts Storage Slows Down Picking

Items at the back

Deep shelves hide cartons and parts.

Search time

Operators look instead of picking.

Bending and reaching

Low and deep shelves cost strength.

Space between racks

Gaps between pallet racks stay unused.

COMPARISON

Shelving, Compact Modules or a Vertical Lift Module

Static shelving

For manual picking.

  • Lowest initial cost
  • Storage depth poorly used
  • Rear items hard to reach

Compact Modules

The shelf comes to the operator.

  • Lower investment than automation
  • No software or controls
  • Full view of every shelf
  • Fast to install and to move

Vertical lift module

Goods come to the operator.

  • Highest density
  • Goods-to-person delivery
  • Higher investment and maintenance
APPLICATIONS

Where Compact Modules Are Used

Warehouse picking

Cartons, containers and small parts with full view of each shelf.

Production supply

Components close to assembly and workstations.

Changing work areas

Mobile CML-ME modules move with the operation.

COMPACT MODULES IN USE

Compact Modules For Small Parts

Fixed and mobile modules between pallet racks and at workstations.

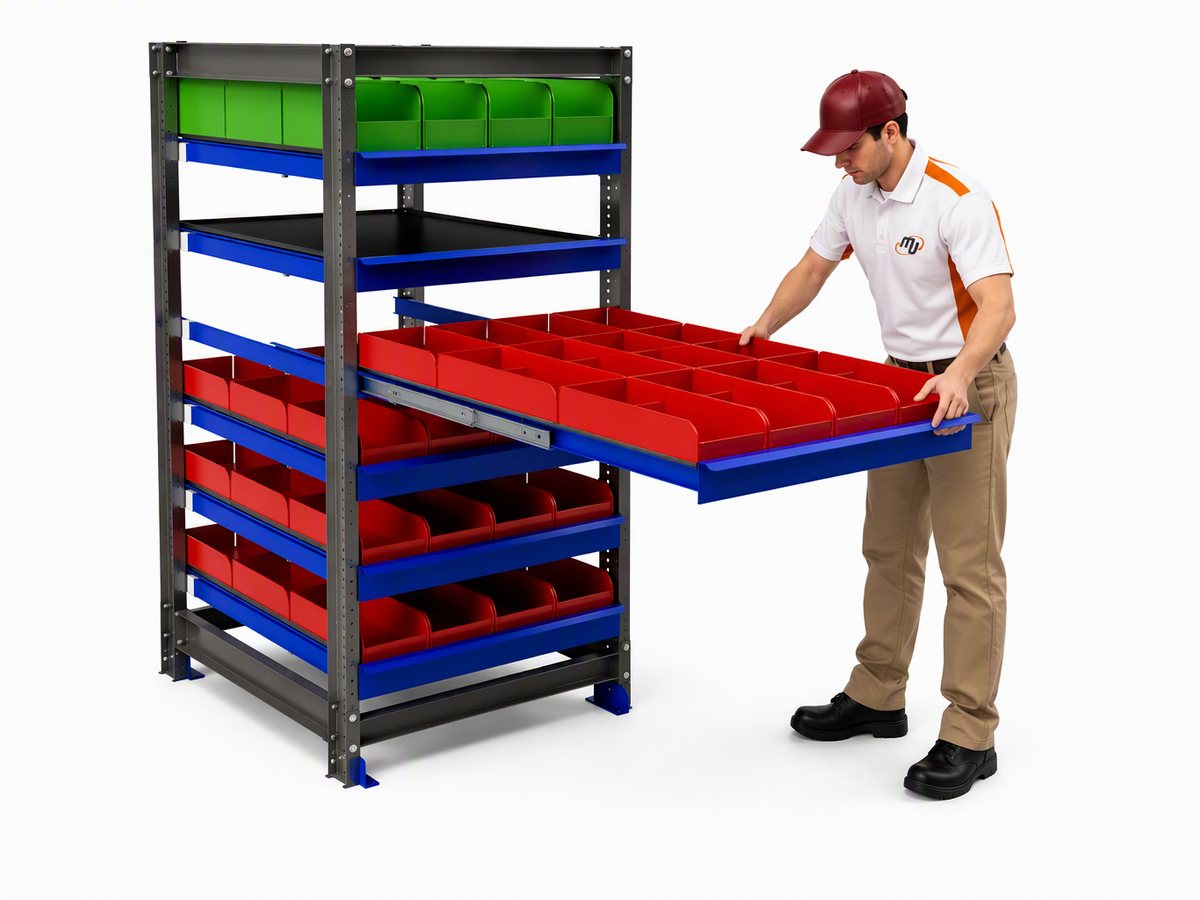

Operator picking from a pull-out shelf of a compact module with small-parts containers

Picking from a pull-out shelf

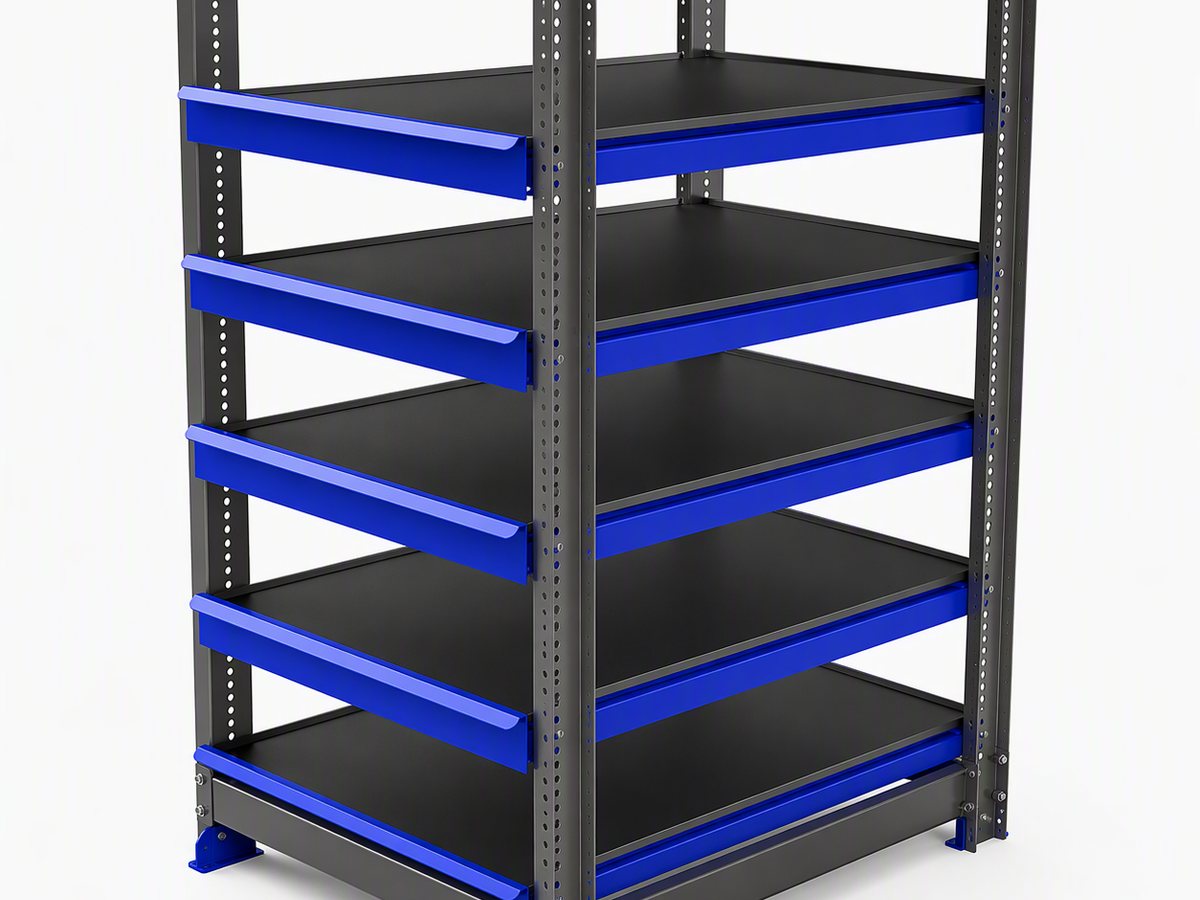

Compact module CML with six pull-out shelves

CML with six shelves

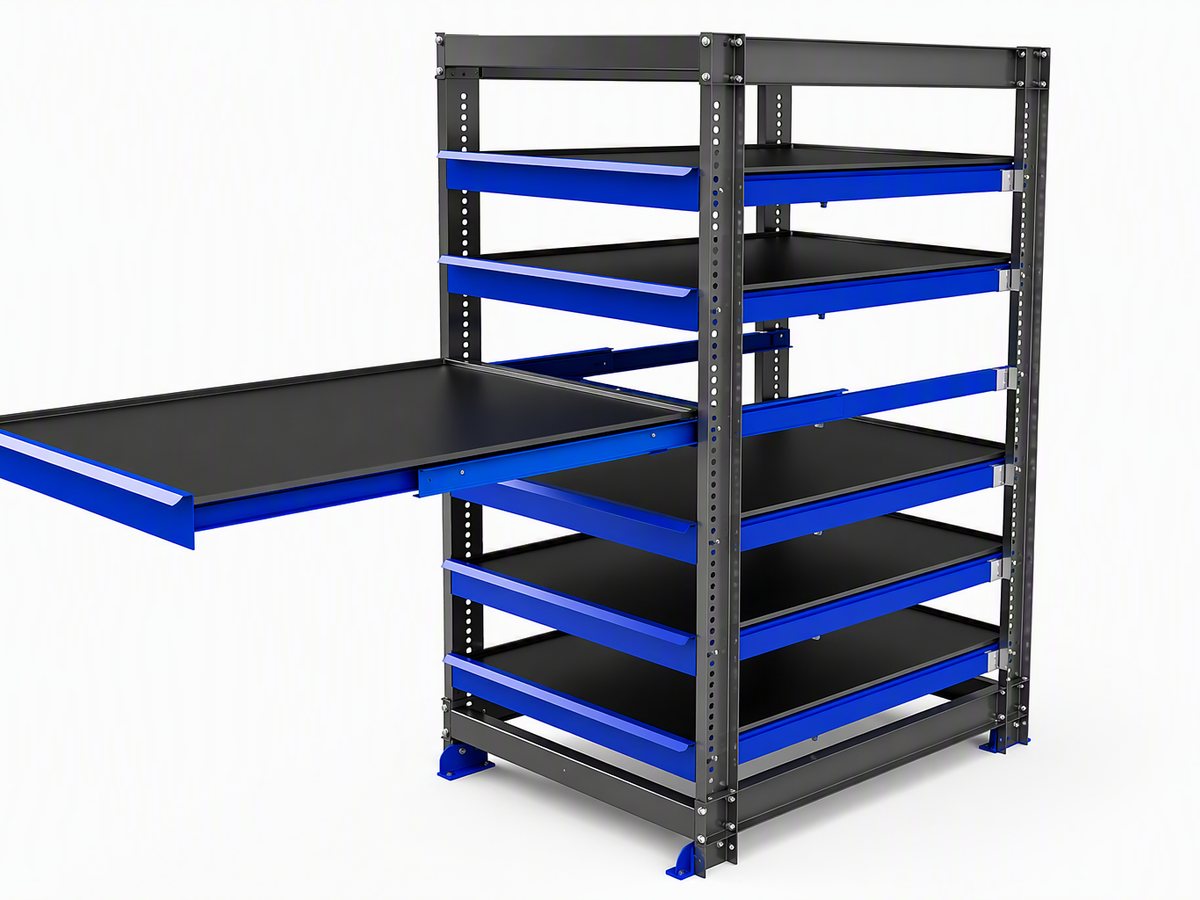

Compact module CML with one shelf fully extended

Full shelf extension

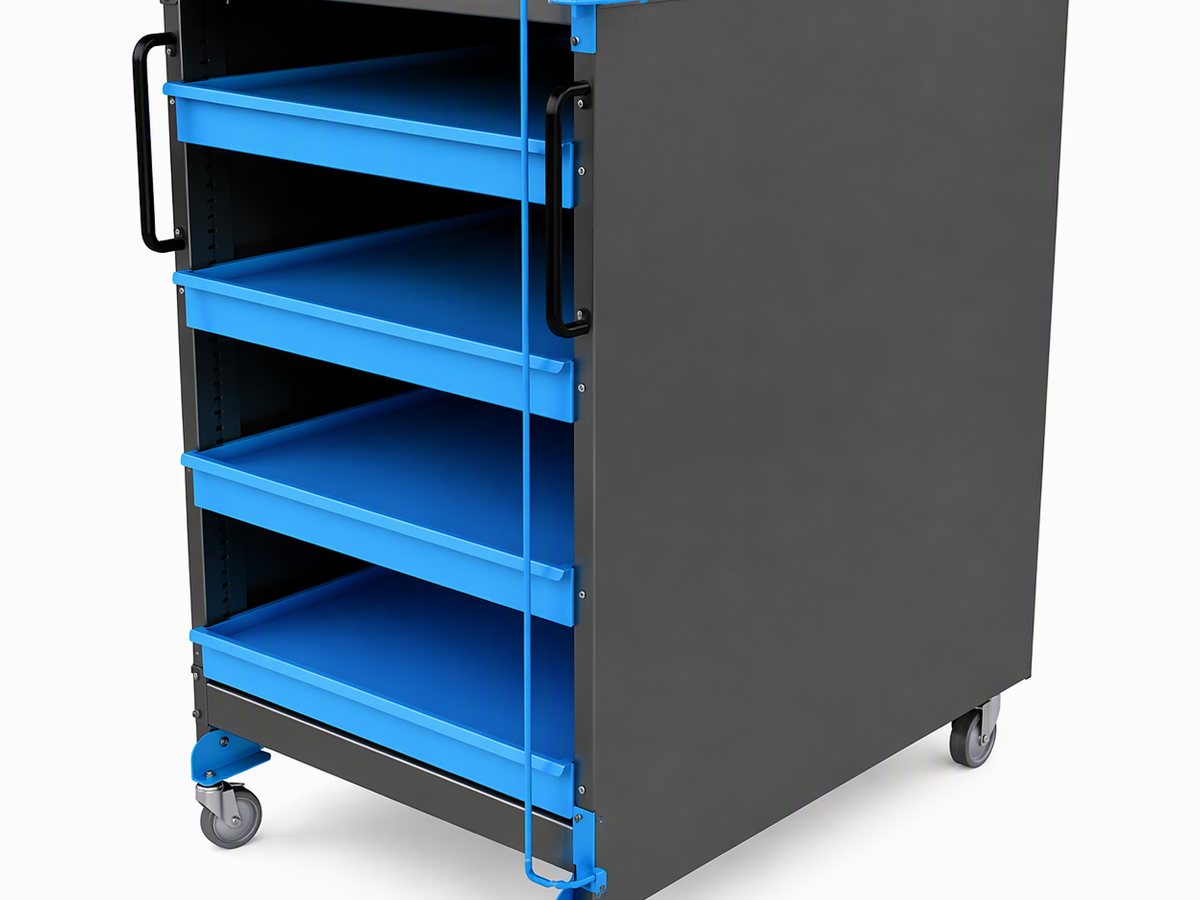

Mobile compact module CML-ME with cladding and wheels

Mobile CML-ME, clad

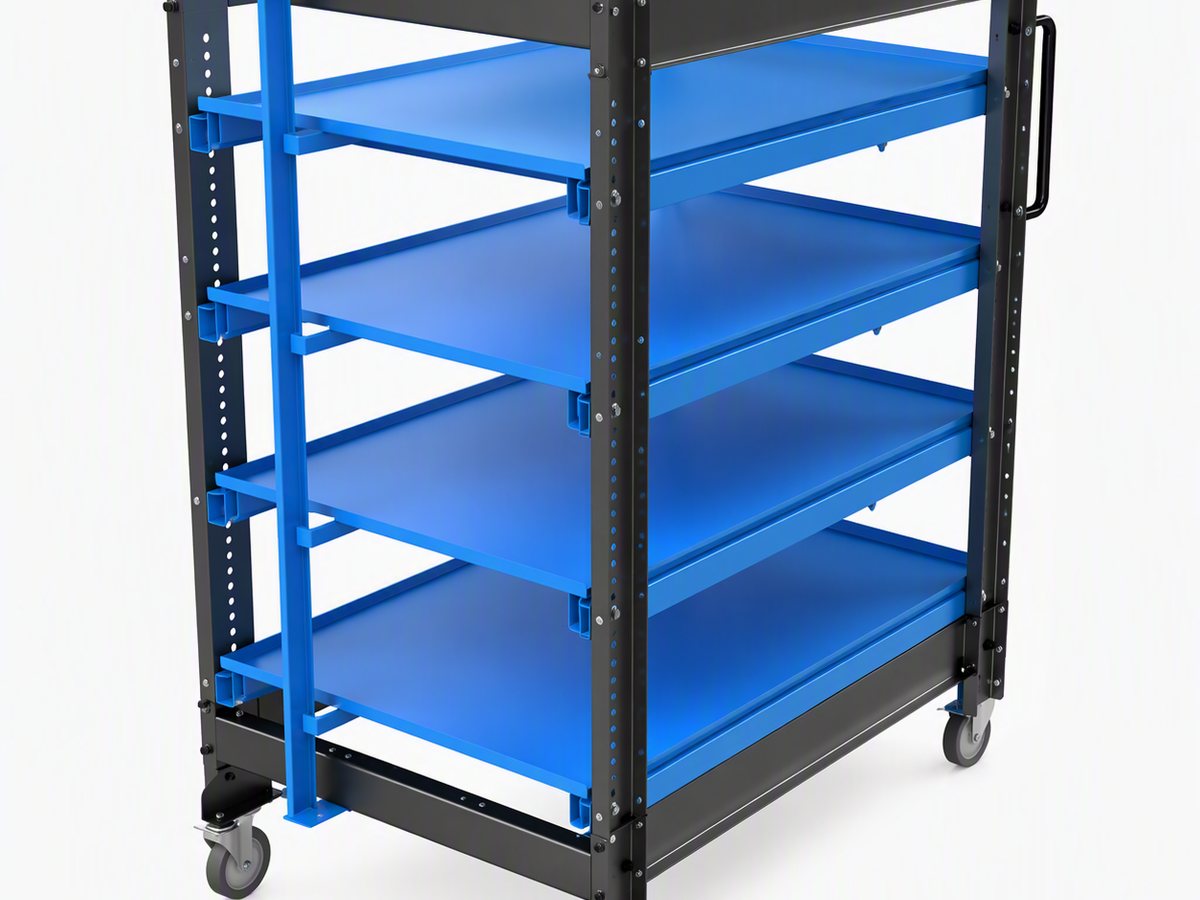

Mobile compact module CML-ME, open version on wheels

Mobile CML-ME, open

MODELS

Compact Module Models

All models with 800 × 1,200 mm load surface per shelf.

CML 70

  • 200 kg per shelf
  • 1,200 kg per module
  • 820 mm pull-out
  • 3 to 6 shelves

CML 100

  • 150 kg per shelf
  • 1,200 kg per module
  • 1,185 mm pull-out
  • 4 to 6 shelves

CMM-100

  • 300 kg per shelf
  • 1,500 kg per module
  • 1,185 mm pull-out
  • 4 to 6 shelves

CML-ME MOBILE

  • 150 kg per shelf
  • 1,000 kg per module
  • 1,185 mm pull-out
  • 3 to 5 shelves, on wheels
SAFETY AND INSTALLATION

Safe Operation and Quick Installation

One shelf at a time
Optional CML LS locking system for CML 70, CML 100 and CMM-100.
Anchored
Fixed modules are anchored to the floor at the rear.
Forklift clearance
100 mm below fixed models.
Ready to use
Supplied fully assembled.
FAQ

Questions About Compact Modules

How many shelves are available?

CML 70 with 3 to 6 shelves, CML 100 and CMM-100 with 4 to 6, the mobile CML-ME with 3 to 5.

When are compact modules a better choice than a vertical lift module?

When picking stays manual, volumes are moderate and the budget or flexibility rules out automation.

Can the modules be moved?

The CML-ME has wheels, a handle and a transport safety lock and moves with the work area.
