UNIVERSAL PULL-OUT UNITS

Pull-Out Units for Existing Racking and Flexible Layouts

Mounted on the beams of your pallet racking or standing on the floor. Universal units bring pallets, collars and cartons into the aisle without rebuilding the rack.

Plan your picking zone See the variants
300 to 1,000 kg Per unit
62 to 100% Extension
Two-way Models available
BEAM OR FLOOR MOUNTING

Flexible Pull-Out Units for Beams and Floors

Designed for flexibility, universal pull-out units can be mounted on pallet racking beams or directly on the floor. Choose from load capacities of 300 to 1,000 kg, with trays and shelves supporting 200 to 300 kg and extension options from 62 to 100%. Two-way models provide convenient access from either side of the rack.

WHY UNIVERSAL

When Picking From the Bottom Level Slows You Down

Universal units fit into the racking you already have and turn hard-to-reach positions into working positions.

Access from three sides
The whole pallet comes into the aisle.
Less strain
Smooth sliding instead of bending under the beam.
More pick locations
More storage and picking in the same rack.
Retrofit
Installed on existing beams after a load check.
VARIANTS

Universal Pull-Out Unit Models

Partial or full extension, one-way or two-way, on beams or on the floor.

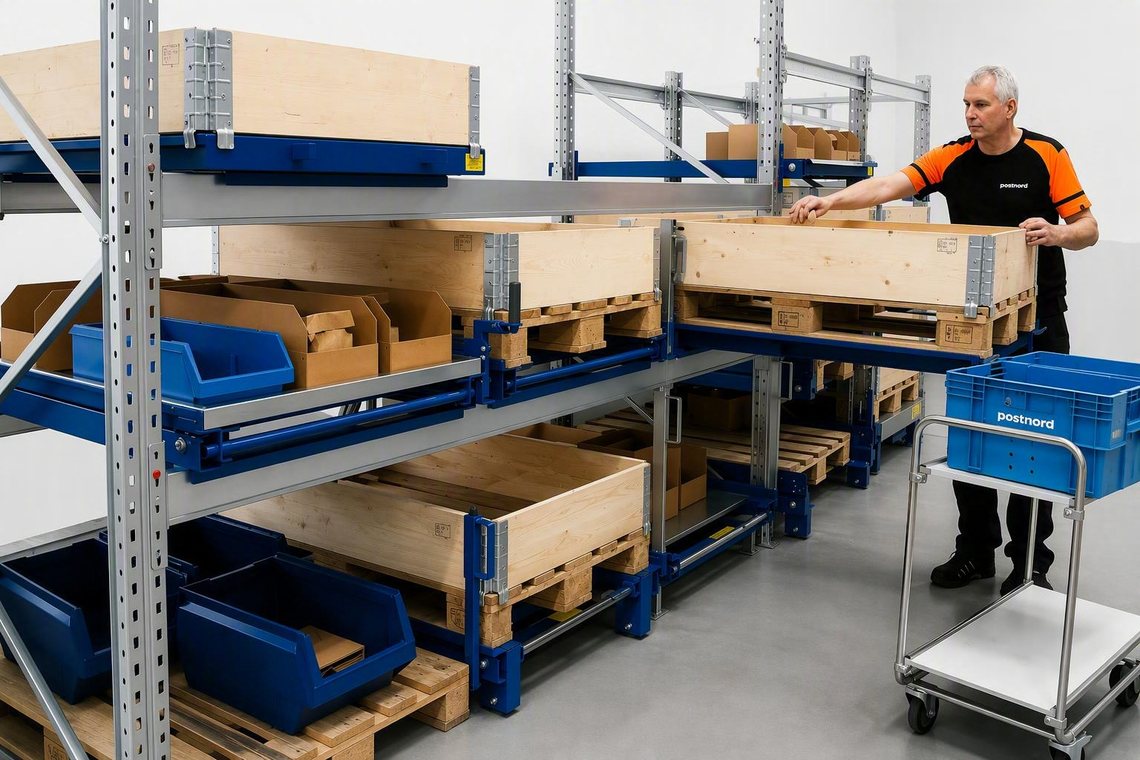

Media image

Beam model

62 to 100% extension on rack beams.

Two-way

Pull out to both sides of the rack.

Floor unit with wheels

Free-standing, front support wheels.

Floor trolley

Low floor model for bottom-level pallets.

UNIVERSAL PULL-OUT UNITS IN USE

Universal Pull-Out Units in Pallet Racking

Beam and floor models in picking zones, from full pallets to pallet collars.

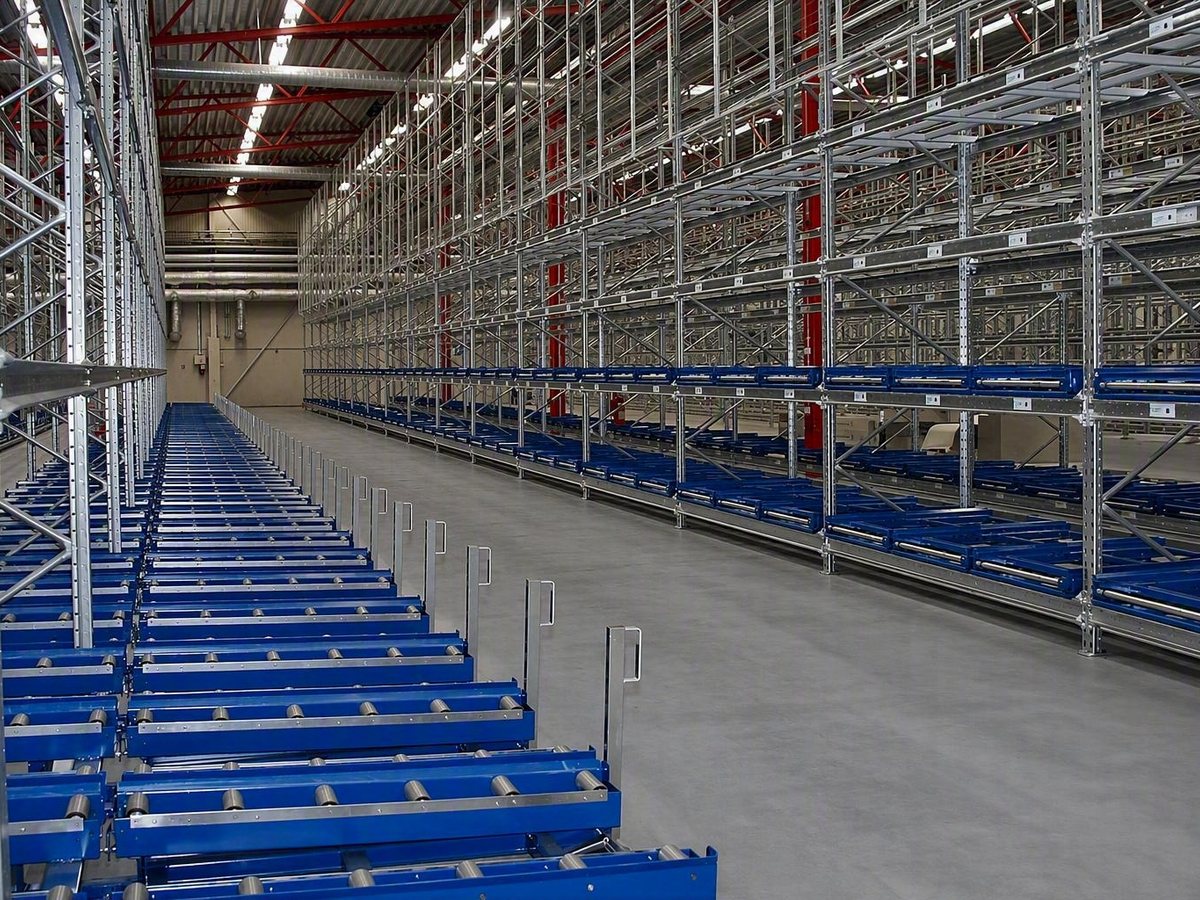

Long rack aisle with pull-out units on the bottom levels of the pallet racking

Pull-out units on the bottom level

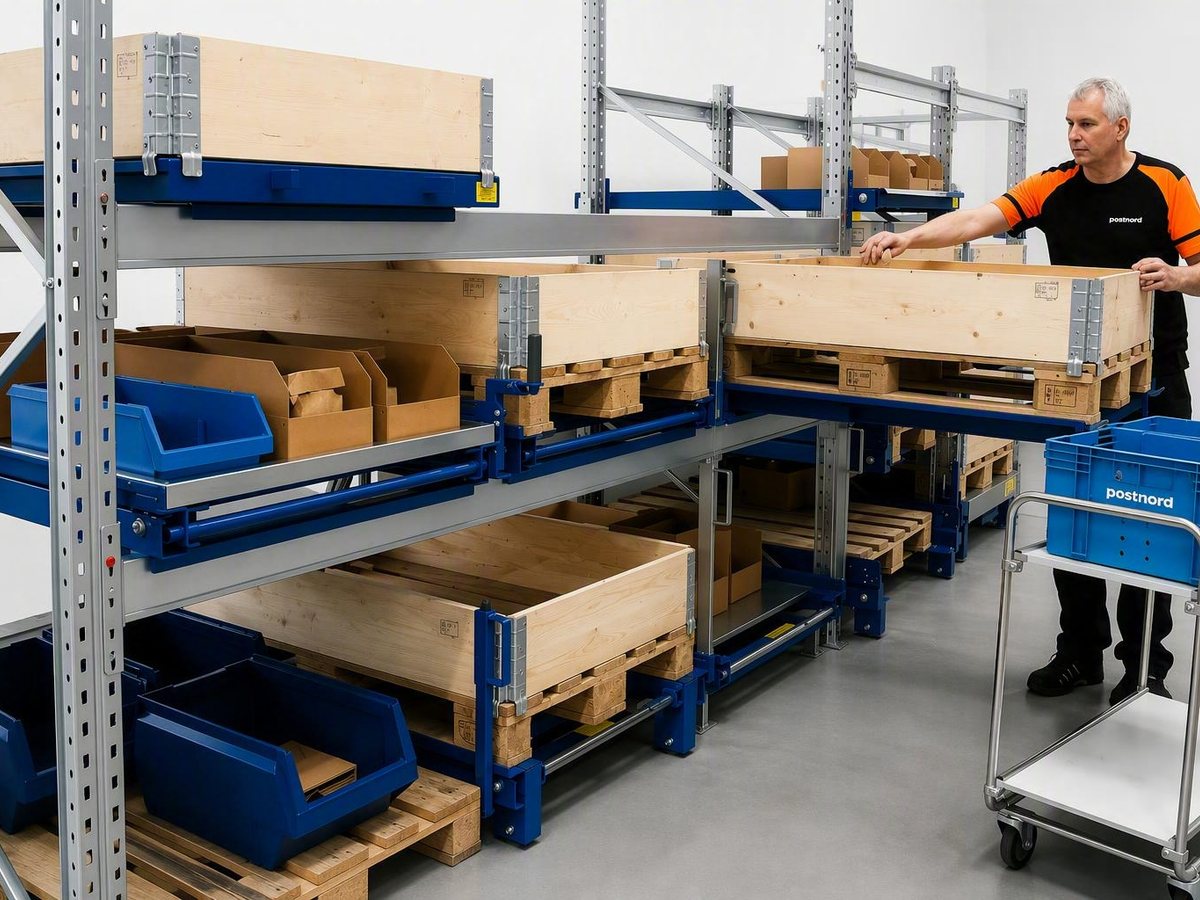

Operator picking from a fully extended beam-mounted pull-out unit next to a picking trolley

Beam model, 100% extension

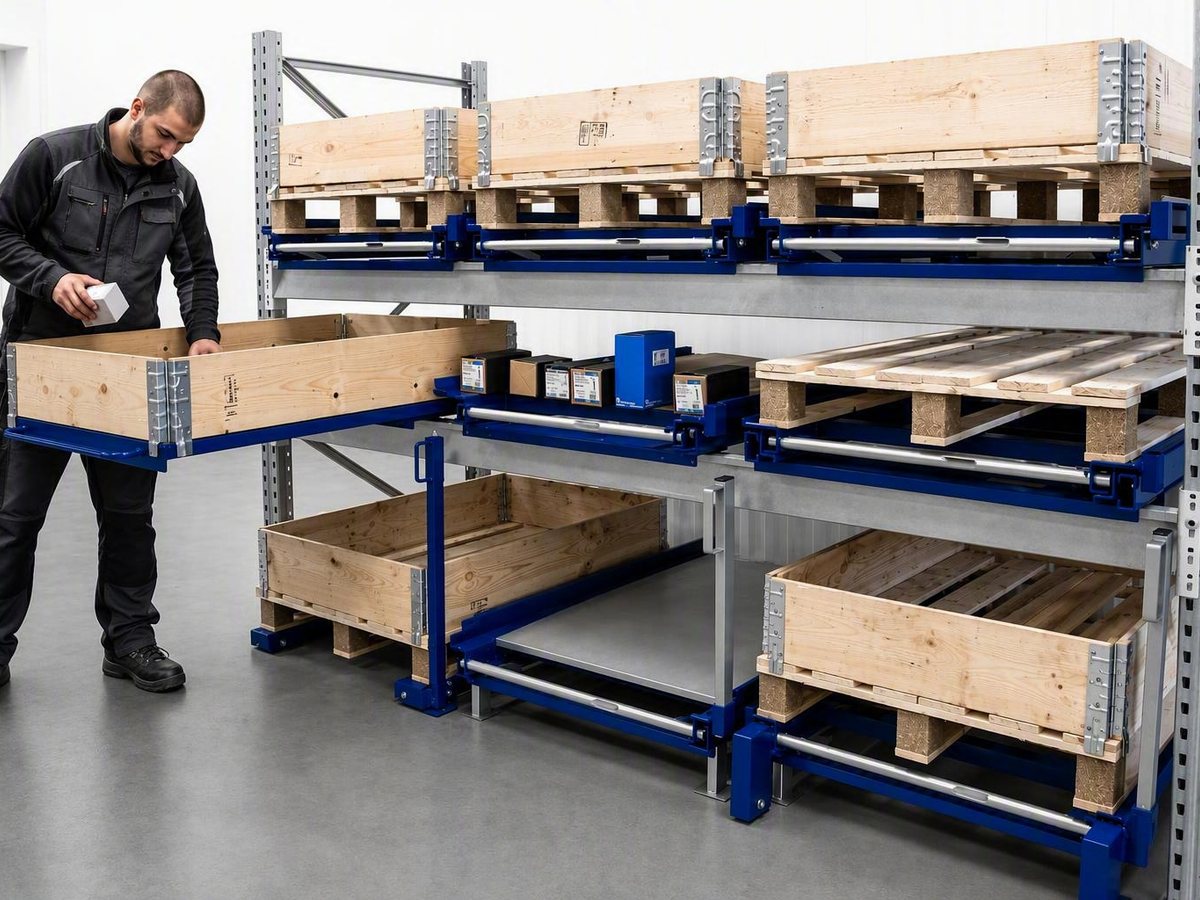

Operator picking from a pallet collar on an extended universal pull-out unit

Picking from a pallet collar

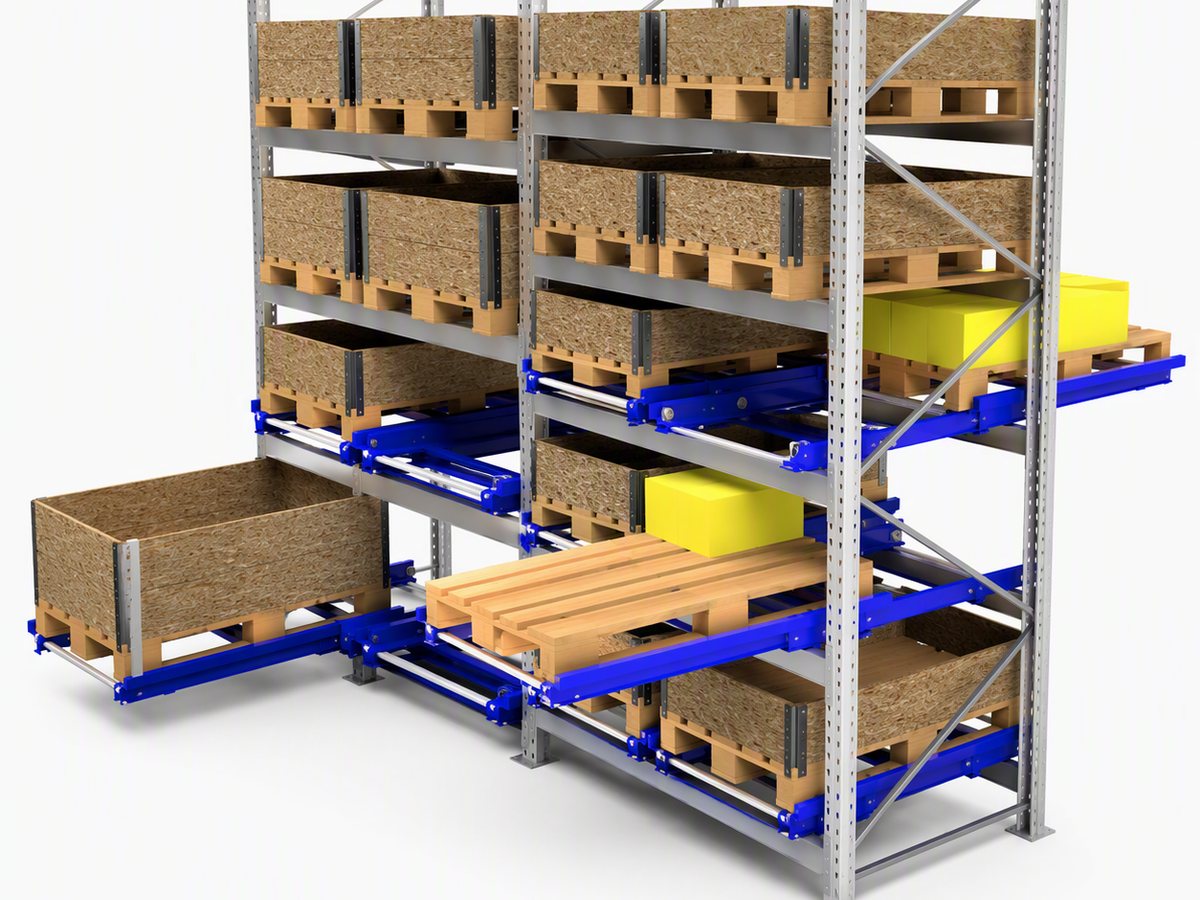

Universal two-way pull-out units in pallet racking, extended to the aisle

Two-way extension

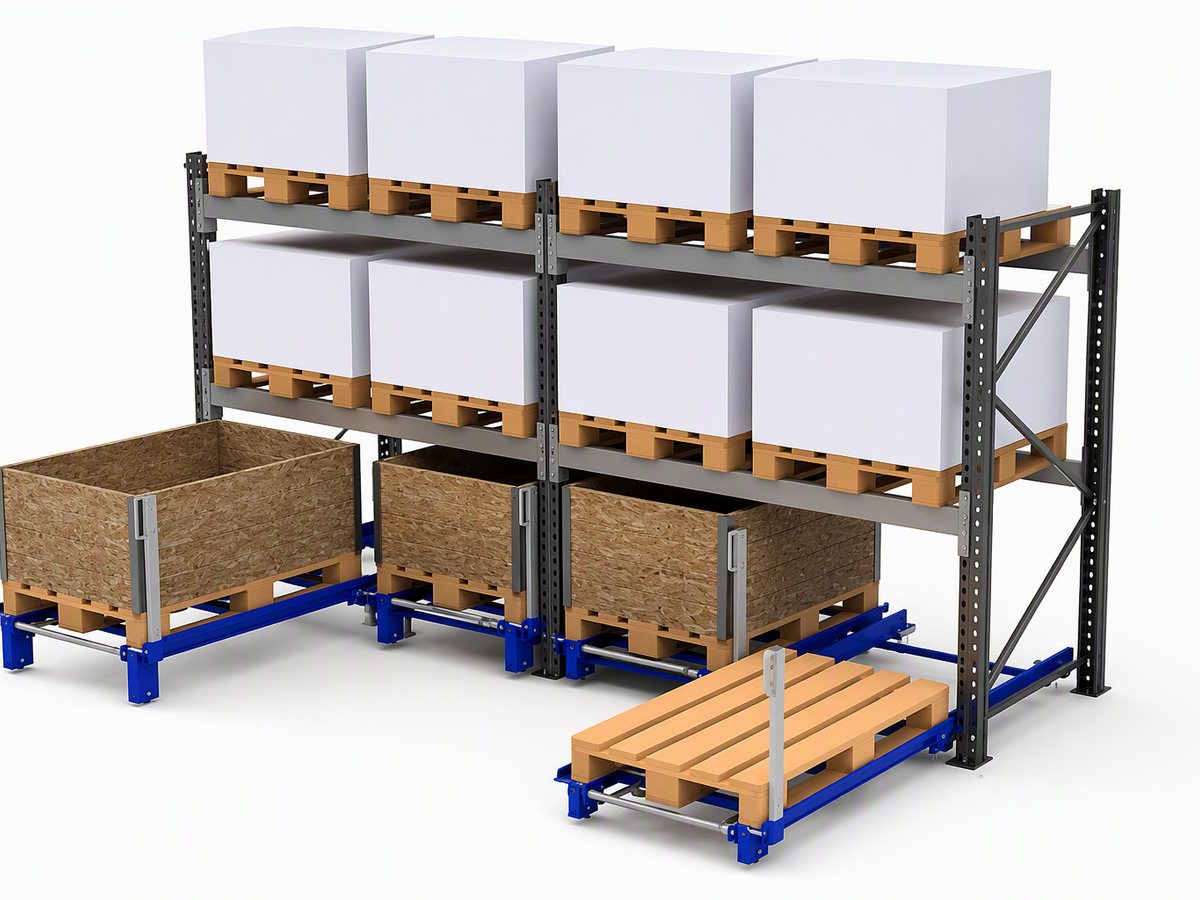

Floor-mounted pull-out unit with support wheels extended from pallet racking

Floor model with support wheels

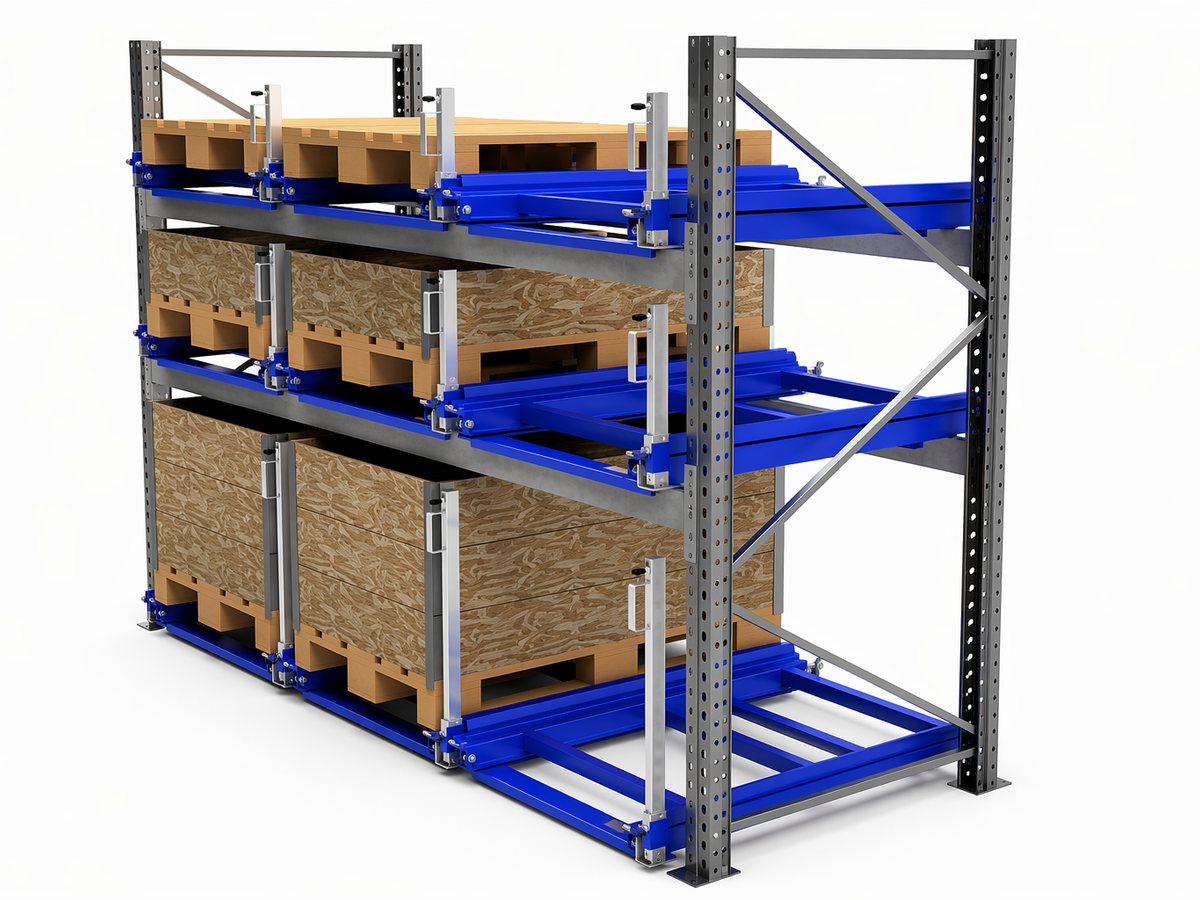

Universal pull-out units with handles on three levels of pallet racking

Units with handles

TECHNICAL DATA

Technical Data and Accessories

LOAD

  • 300 to 1,000 kg per unit
  • 200 to 300 kg per tray or shelf

EXTENSION

  • 62 to 100%
  • Two-way models

MOUNTING

  • Beam-mounted
  • Free-standing on the floor
  • Integrated ergonomic side handle

ACCESSORIES

  • Side handles
  • Security lock for beam models
  • Rear protective sheet
  • Heavy-duty grating shelf
SAFETY

Safe Operation of Beam-Mounted Pull-Out Units

Beam load checked

The extended unit shifts the load to the front beam.

One unit per beam section

Only one pull-out unit per beam section is extended at a time.

Closed when not in use

Units not in use are pushed back and stay closed.

CUSTOMER STORY

Danfoss, Silkeborg: Floor and Beam Models in a P90 Warehouse

140 pull-out units on the first level of a narrow aisle warehouse

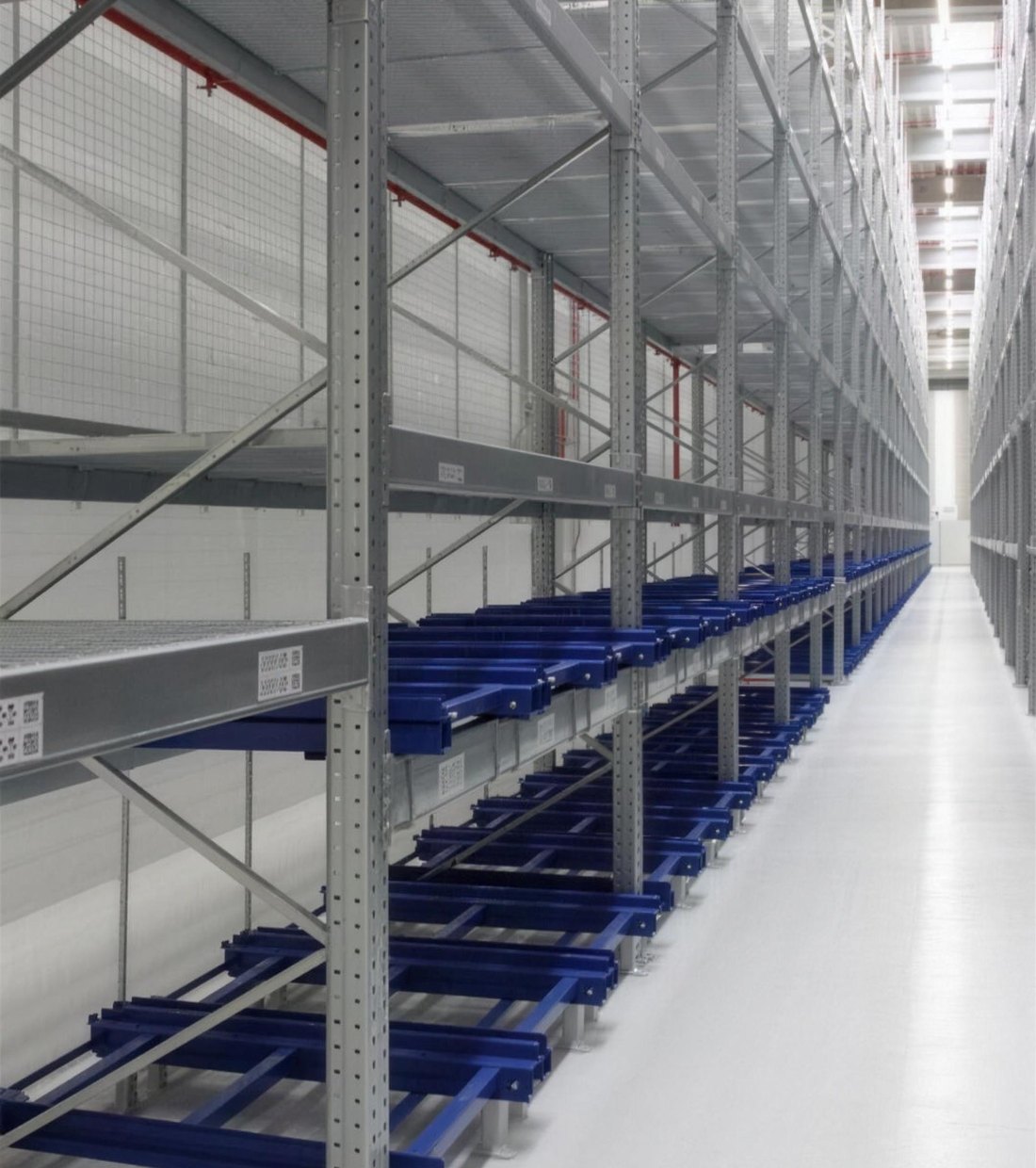

Narrow aisle at Danfoss Silkeborg with pull-out units on the first level
New build

Ergonomic manual picking in a new P90 warehouse

Danfoss equipped its new 2,700 m² warehouse in Silkeborg, Denmark, with Dexion P90 narrow aisle racking. Floor- and beam-mounted pull-out units make manual picking at the first level safer and more ergonomic, while mesh gratings support special 800 × 800 mm iron pallets.

140 Pull-out units
5,200 Pallet locations
13 m Racking height
MANUFACTURING NEW BUILD P90 NARROW AISLE DENMARK
Read full case study
"The solution works well."
Klaus Pedersen
Lean Transformation Expert
Danfoss
FAQ

Questions About Universal Pull-Out Units

Can universal pull-out units be installed in existing racking?

Yes. They mount on the beams of existing pallet racking or stand on the floor. We check beam capacity for the extended load first.

Which load carriers fit?

Pallets, pallet collars, cartons and trays. Shelf versions carry 200 to 300 kg.

What does two-way extension mean for the layout?

The unit can be pulled out to both sides of the rack, so two aisles can pick from one position.

Plan Your Picking Zone

Tell us your rack type, load per unit and pallet dimensions. Our engineers will check compatibility and recommend the right universal pull-out units.
