Upright pull-out units are mounted directly on the rack uprights. Because picking happens in the extended position, less clearance is needed above each pallet and more levels fit into the same height. They carry 500 to 1,000 kg per unit, trays and shelves 200 to 300 kg, and extend 62 to 100%.
From the full pallet platform to the 6 mm shelf.
62 to 100% extension.
Pulls out on both sides of the rack.
6 mm construction height, 60 mm lip.
Front ball-bearing support wheels.
More pick levels in the same rack, from pallet platforms to 6 mm shelves.

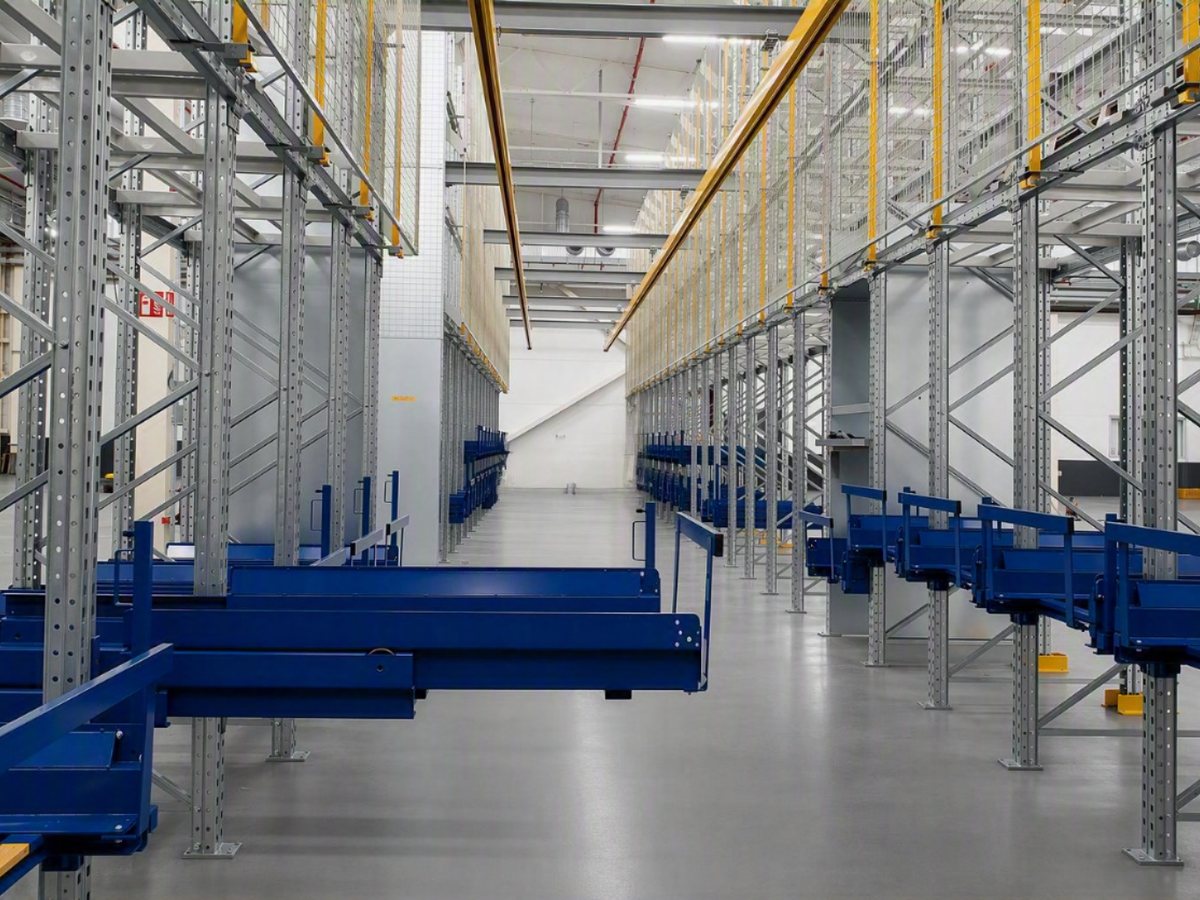

Platform picking in a new installation

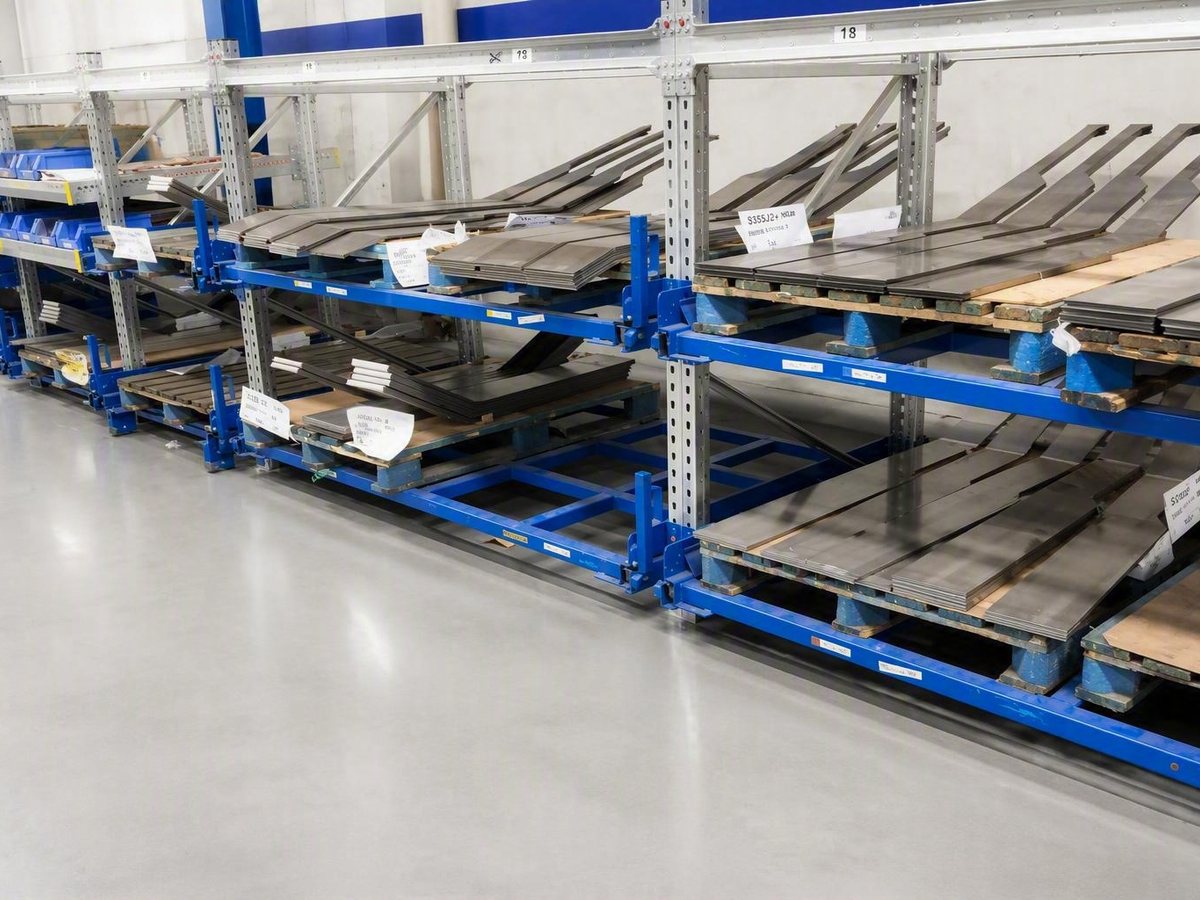

Heavy blanks in production

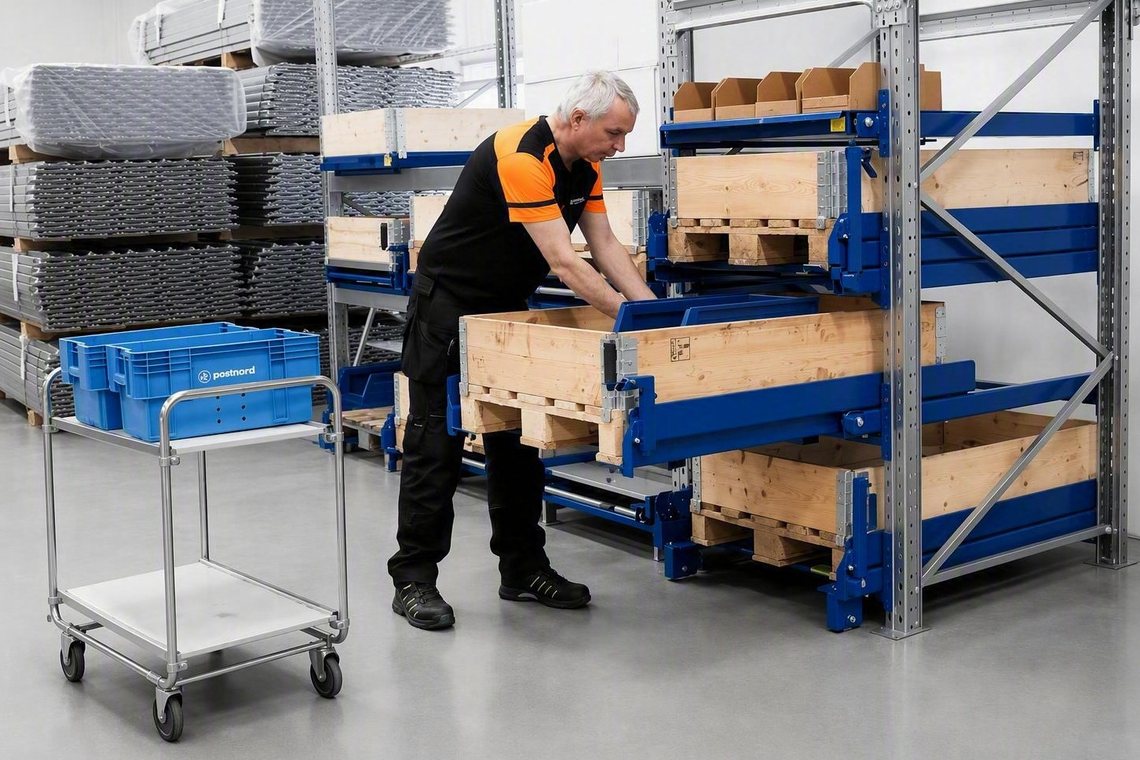

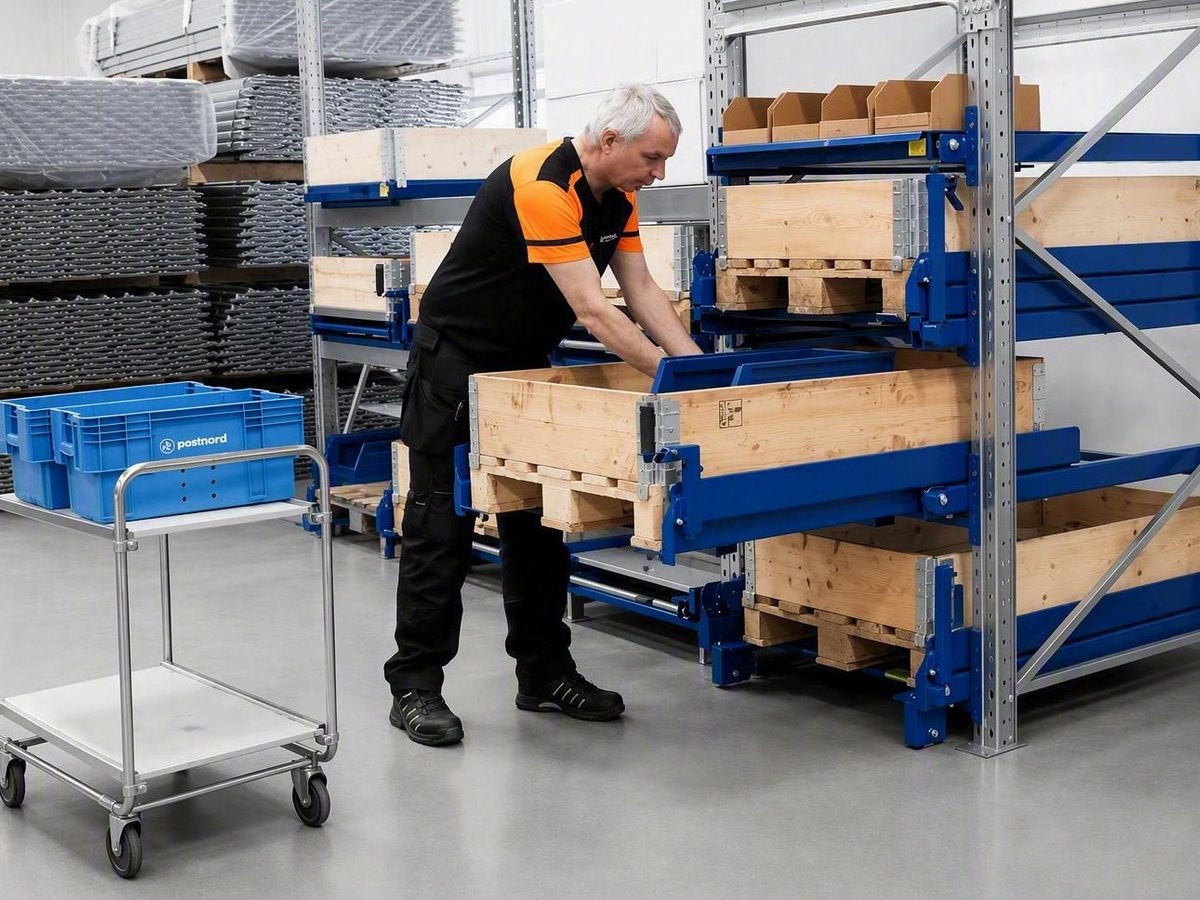

Picking at working height

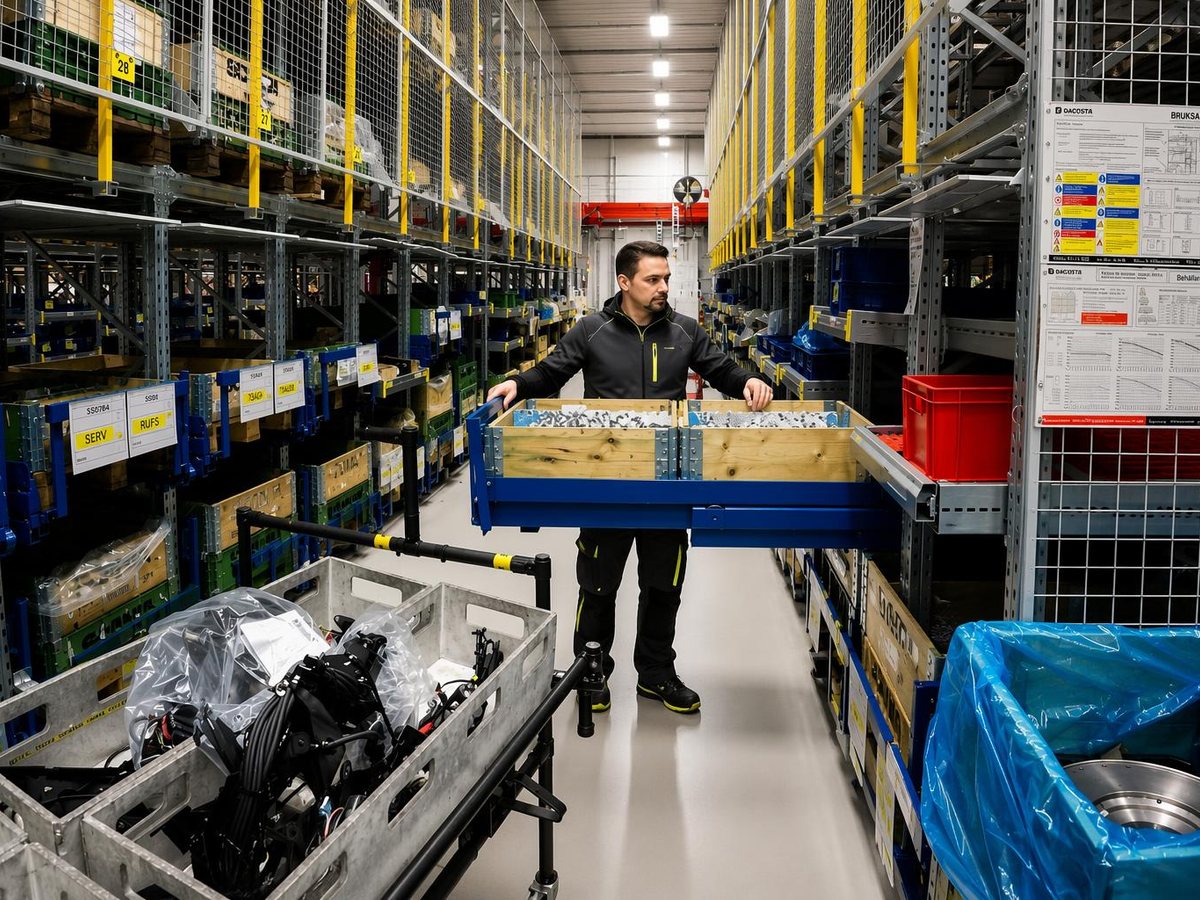

Upright units in a picking aisle

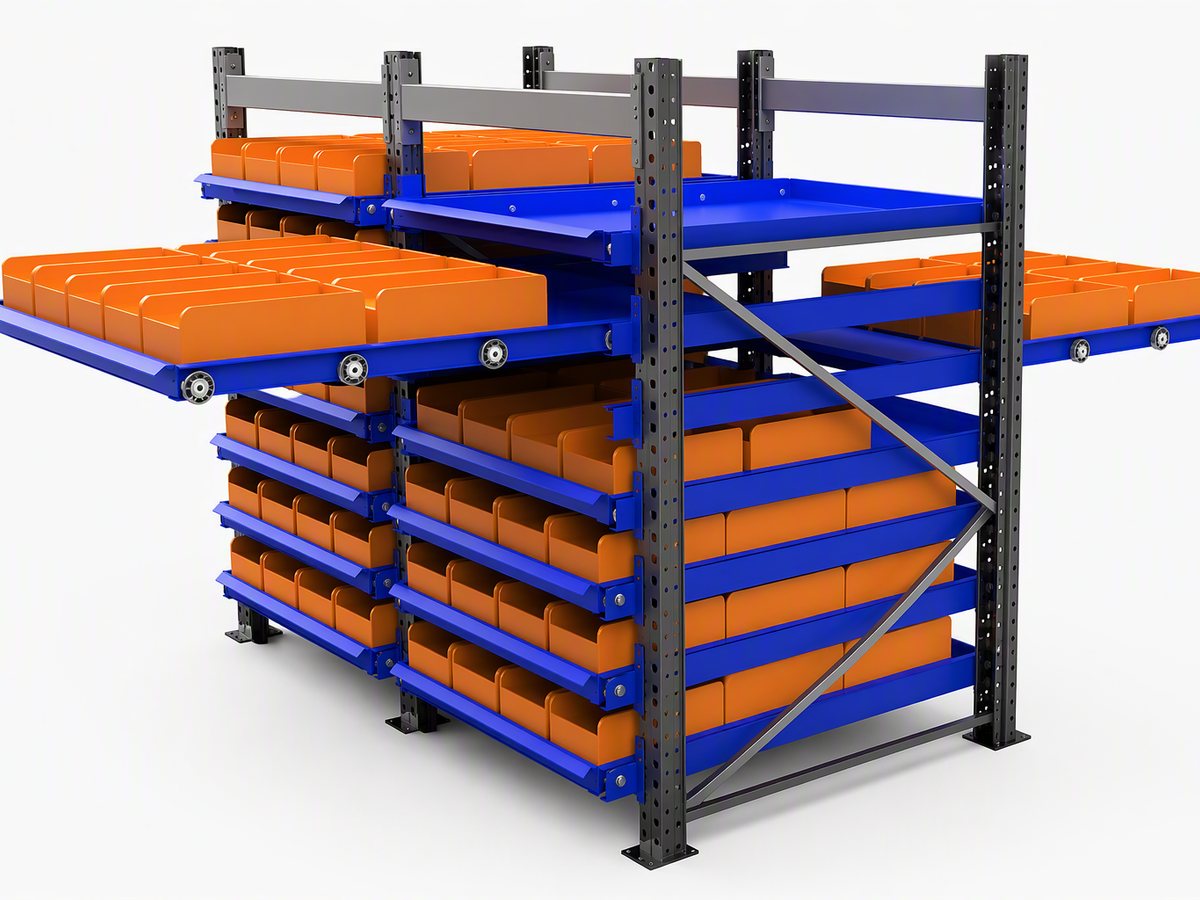

Two-way pull-out shelves

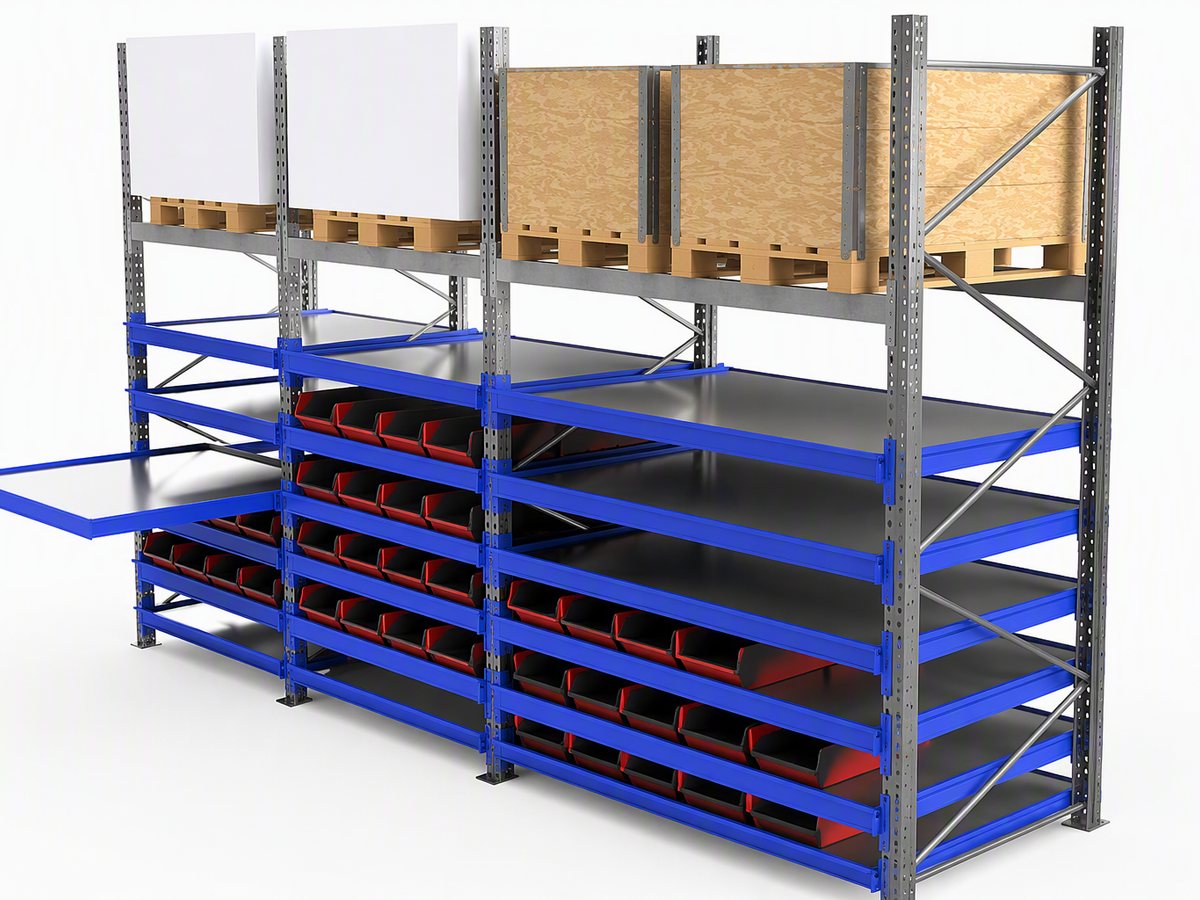

Pull-out shelves for containers

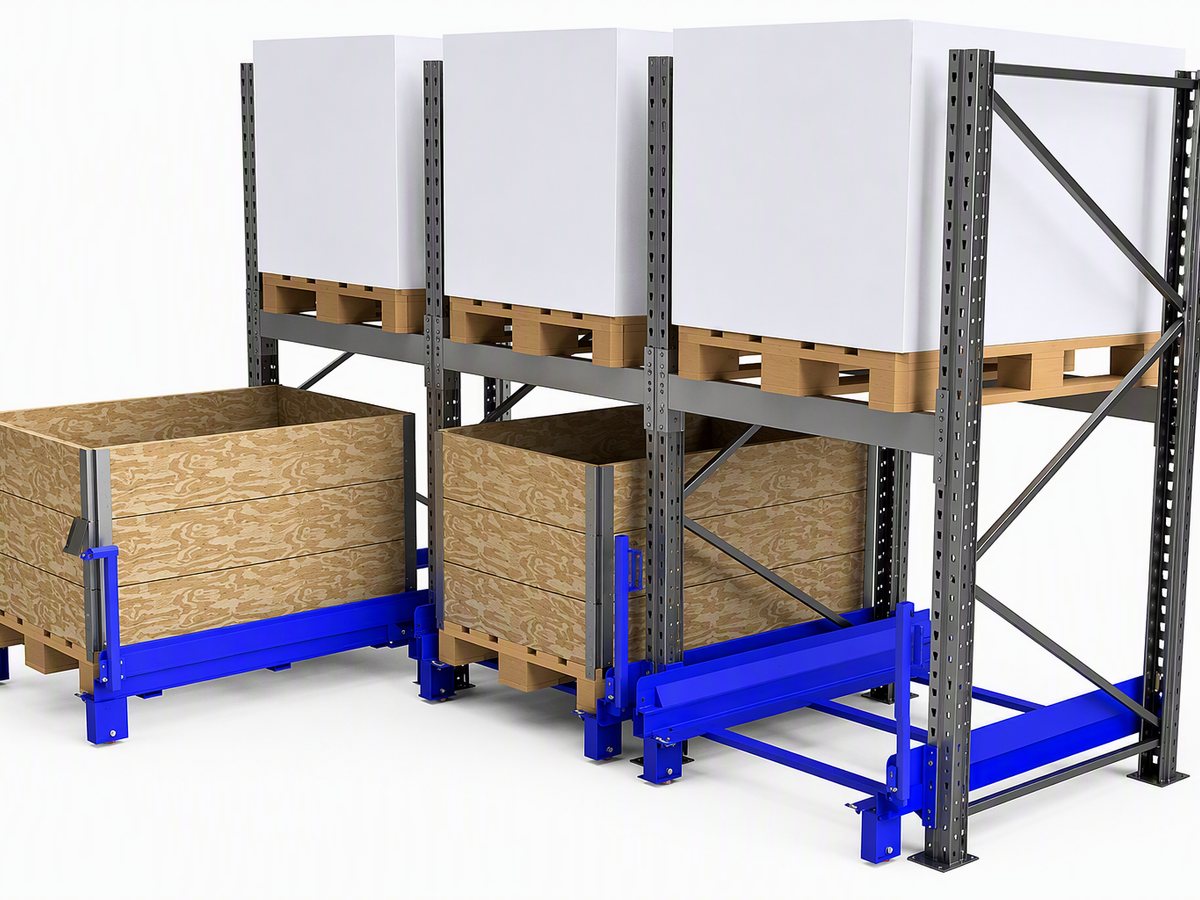

Floor level unit

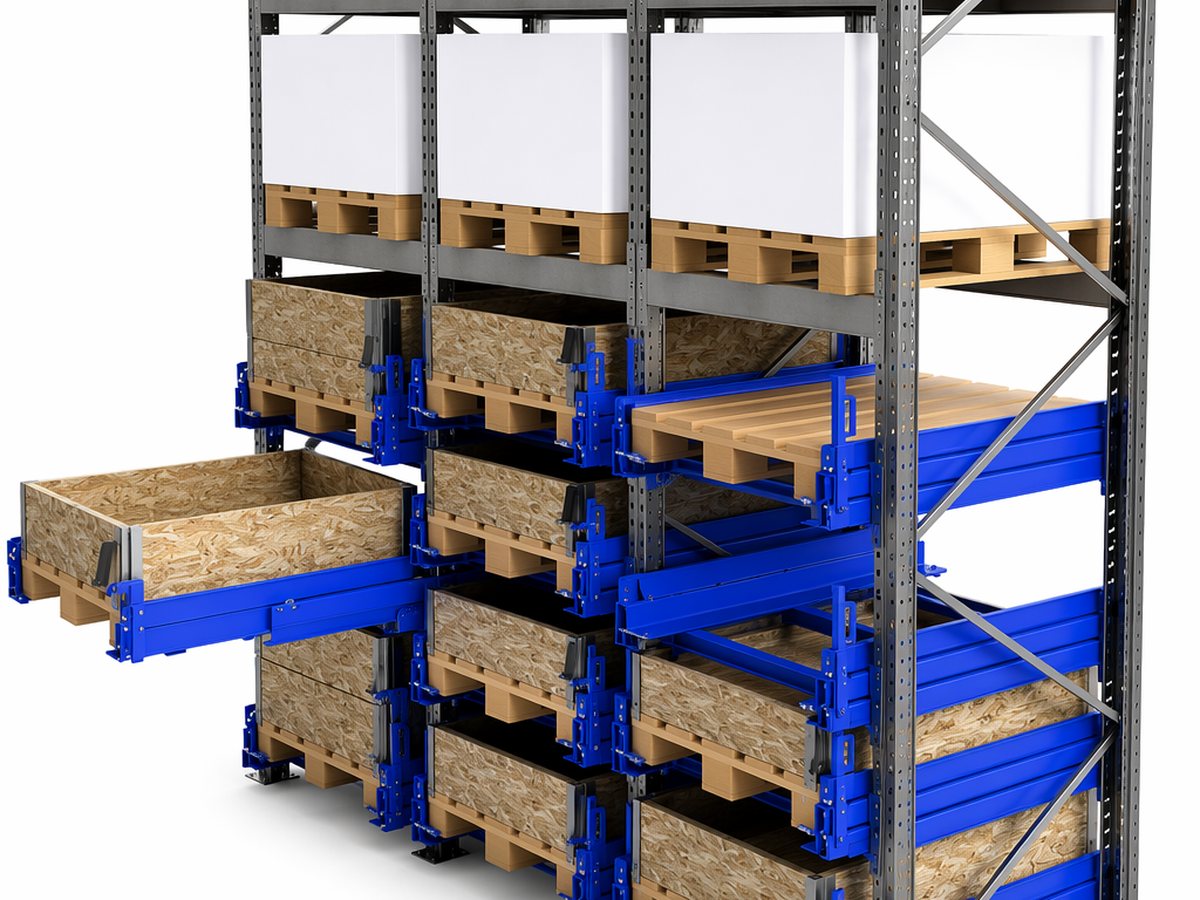

100% extension
They mount directly on the uprights and need less clearance above each pallet, so more picking levels fit into the same rack height.
500 to 1,000 kg per unit and 200 to 300 kg per tray or shelf.
Share your rack dimensions and pallet height. We’ll show you how many more pick levels you could gain.
