The Dexion Slotted Angle is the ideal solution for all your bespoke storage or support requirements. Completely flexible, it lets you make the maximum possible number of bolt connections, no matter what sections you're using.

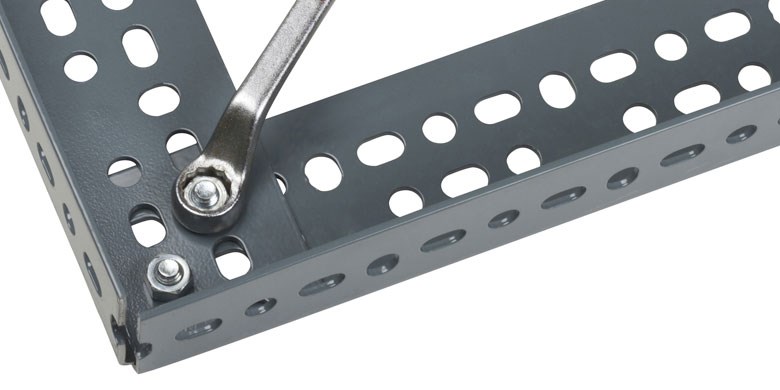

Quick and easy to assemble, Dexion Slotted Angle comes in four sizes and two lengths. Any number of structures can be achieved, by cutting to size and bolting together.

These can be easily modified whenever required, and even be easily dismantled and re-used.

Dexion Slotted Angle offers a range of possible uses, including:

  • Benches
  • Security cages
  • Access platforms
  • Test rigs
  • Temporary partitioning or shelving
  • Support for pipework and cladding

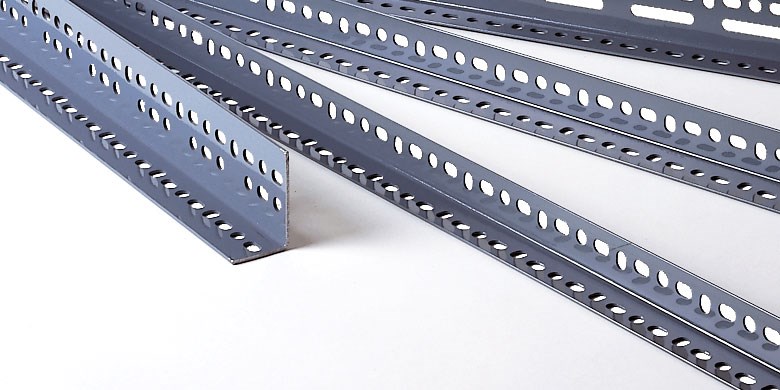

Angles available

  • 140 – 36mm x 36mm & 1.75mm thick
  • 160 – 41mm x 41mm & 2mm thick

Both available in standard lengths of 2134mm and 3048mm

  • 225 – 41mm x 62mm and 2mm thick
  • 260 – 44mm x 66mm and 2.5mm thick

Both available in 3048mm lengths

Channels

  • A 345 channel section (43mm x 87mm) for heavier duty applications
  • A 38mm wide flat strap section – to provide cross bracing

Colour

  • Powder coated dark grey metal
  • Galvanized metal
  • Flat strap with a light grey finish

Bracing

  • Corner plates – providing bracing at angle joints
  • Single and double base plates
  • Vertical strut base plates – to protect the floor or for permanent fixture

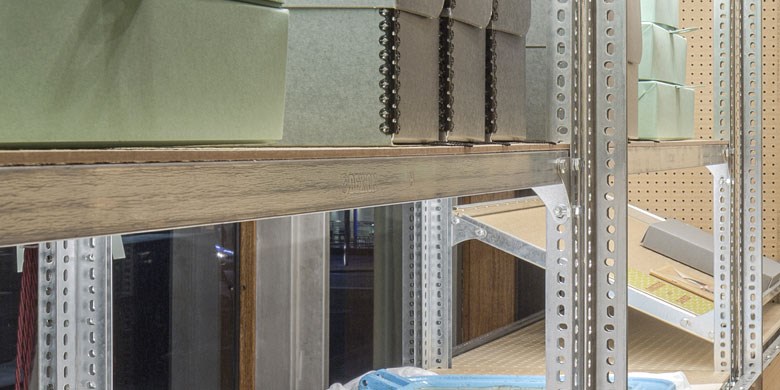

Shelving

  • Use in conjunction with our range of MK6 steel shelves:
  • Lengths – 914mm / 991mm / 1219mm
  • Depths – 305mm / 381mm / 457mm / 610mm / 762mm / 914mm

Load capacities

  • 180kg – 270kg (dependent on shelving size and duty)
