BUILT FOR PRODUCTION OPERATIONS

Make Long Goods Flow, Without Slowing Production

The Long Span Tower brings long bars, tubes and profiles into a structured, safe and semi-automated production logistics process.

Speak to an expert
Material Flow Direct, controlled supply to production
Space Efficiency Vertical storage frees valuable production space
Automation Ready Scalable from manual to integrated processes
PRODUCTION LOGISTICS

Automated Long Goods Storage For Industrial Production

Long goods stored on the floor or in cantilever racks can create safety risks and make just-in-time supply to production unreliable. The LS Tower provides automated vertical storage, delivering material directly to the operator on demand for safer, more efficient handling.

Up to 70%
Less floor space used - vertical storage creates room for production, not just reorganisation
Just-in-time supply
Material delivered to the operator on demand, every time
Higher safety
Controlled access and handling of materials
Less manual handling
Reduced forklift dependency and repetitive lifting
INDUSTRIAL OPERATION

Long Span Tower Installations

Real installations and applications in industrial production environments

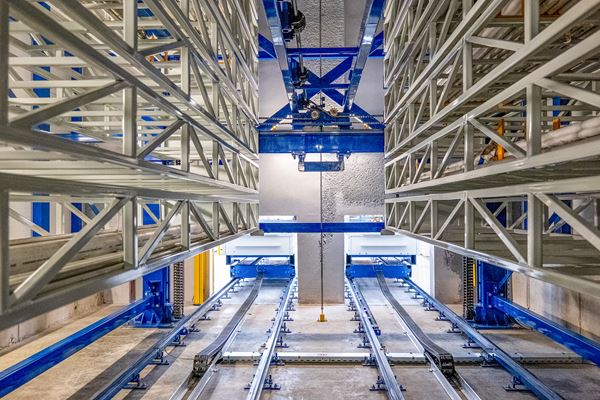

Long Span Good Tower

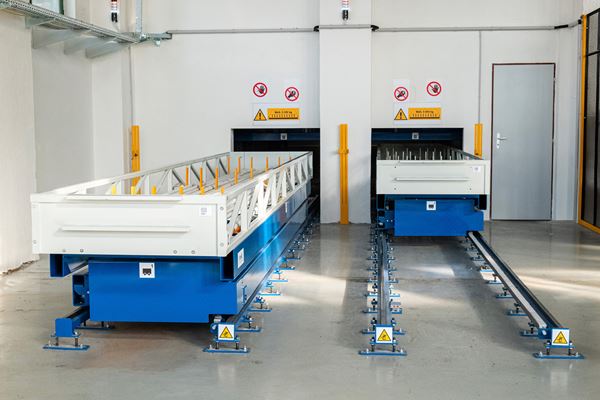

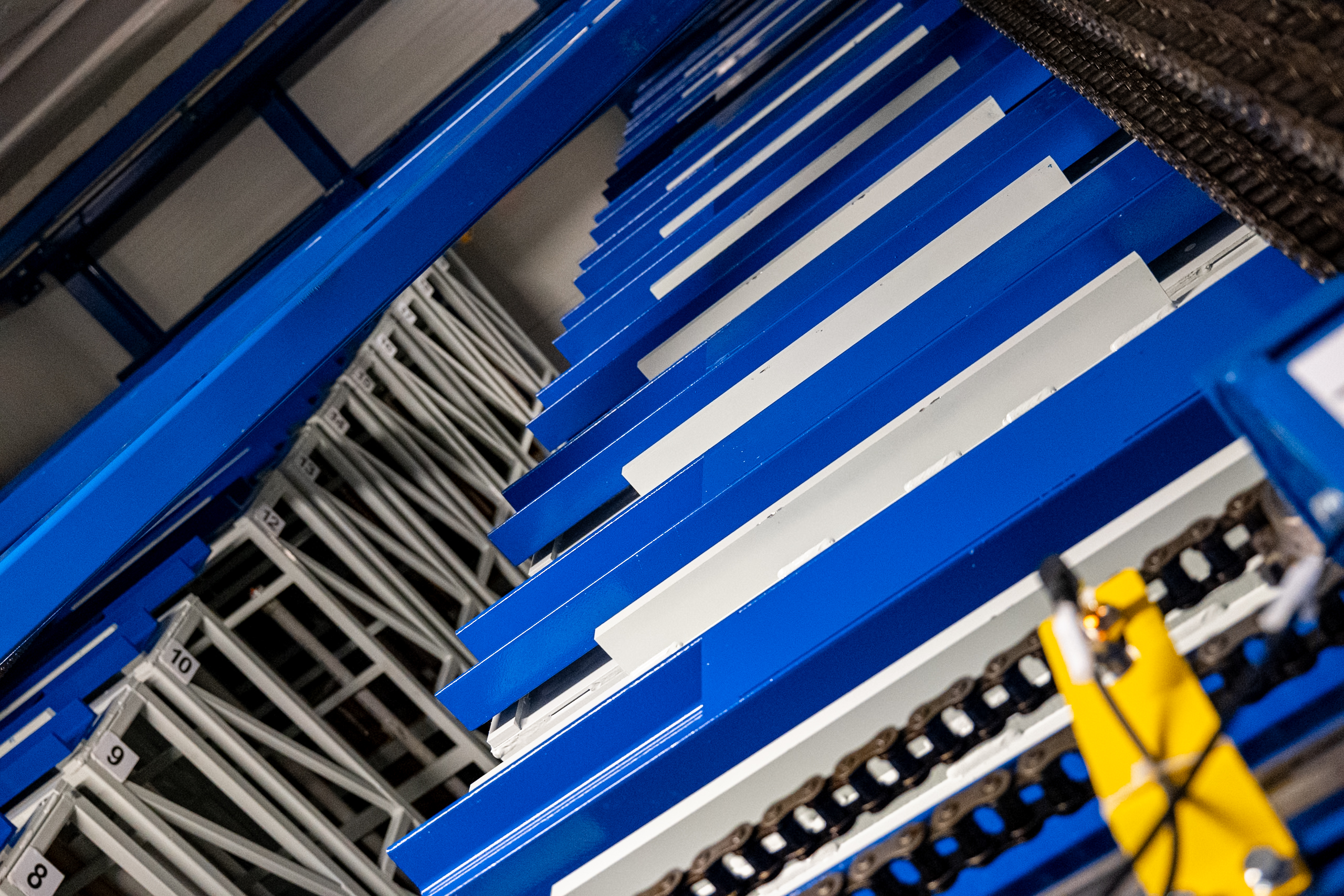

LS Tower for long loads with safety features

Project image

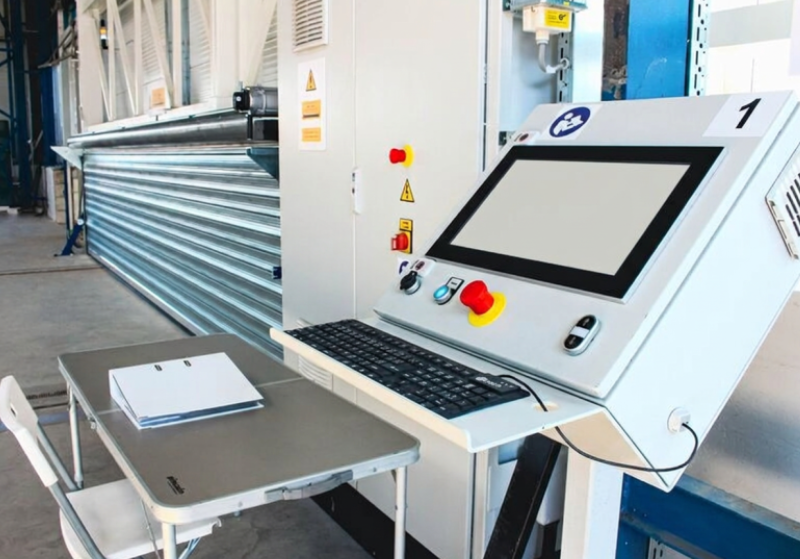

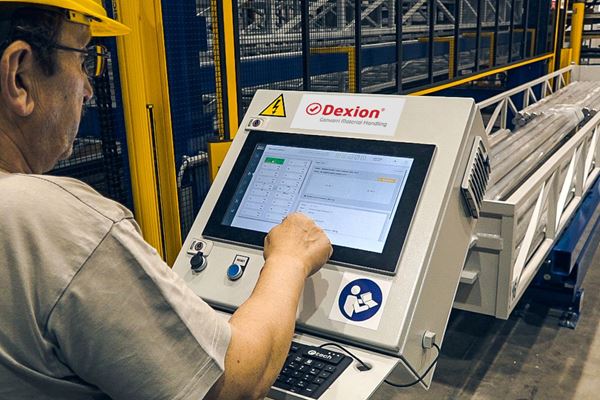

LS Tower WMS operating system with panel

Project image
Project image
Project image

Why Choose Dexion's Long Span Tower System

The LS Tower is a vertical storage system engineered for the storage and retrieval of bars, tubes and profiles up to 12.5 m in length and 5 tonnes per container. A welded steel tower structure houses containers on a vertical lift, delivering selected material to the transfer point automatically. The system can be configured as a single, double or multi-tower to match available height and required capacity — and integrates with WMS for full inventory visibility

  • Ergonomic loading and unloading
  • Fast and efficient material movement
  • WMS Integration
  • Flexible tower configurations
FUNCTIONALITY

Understanding The Long Span Tower

Automated retrieval and controlled handling of long and heavy goods

Storing long and heavy goods explained and solved by the LS Tower
Storing long and heavy goods explained and solved by the LS Tower
Vertical storage
Materials are stored in containers arranged in a vertical tower structure, optimising the use of available height
Lift-based retrieval
An integrated lift moves to the required position, retrieves the container and transports it to the operator area.
Goods-to-person handling
Material is delivered to a fixed access point, reducing movement, search time and manual handling.
Return and storage
After handling, the system automatically returns the container to its storage position.
KEY BENEFITS

Automated Long Goods Storage Built For Production Environments

From cantilever racking replacements to just-in-time production supply - the LS Tower is engineered around how manufacturers actually work

Delivers materials to production on demand Scalable from manual to fully integrated Replaces cantilever racking in less footprint Rated for indoor and outdoor installations Real-time inventory visibility
CUSTOMER STORY

Long Goods Project Spotlight

Hear what our customers have to say about us

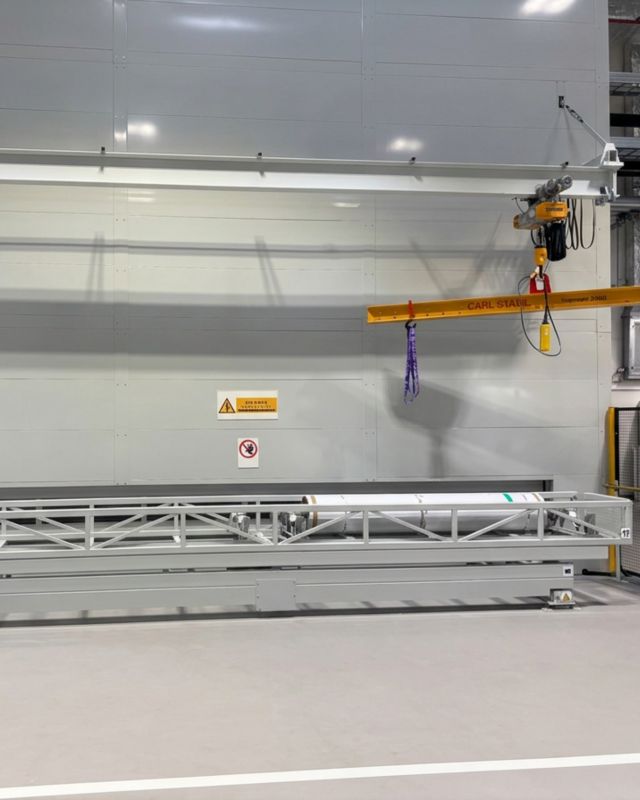

Fully enclosed Long Span Tower installation with integrated crane system for loading and unloading heavy cylindrical materials in a production environment
Improving space and material flow in production

Maximising Space and Control for Heavy Roll Storage

A manufacturer of technical films and foil products needed a safer, more efficient way to store and handle large metal rolls and cylinders used in coating and lamination processes. The prior setup struggled to meet the weight and handling requirements due to space constraints in the operation.

Dexion delivered a fully customised Long Span Tower solution, designed specifically for cylindrical loads. The system was configured with 33 custom containers, each capable of supporting up to 4,000kg, providing structured, high-capacity storage for heavy rolls while maintaining safe, organised handling.

To improve operational efficiency, the system includes an integrated 1.5-tonne crane, enabling controlled loading and unloading directly at the transfer point. The enclosed design adds an extra layer of protection, ensuring safe operation in the production environment and reducing handling risks.

Despite the complexity of the solution, the project was delivered in just 3 weeks. A Siemens-based control system provides reliable, intuitive operation, giving the customer full control over storage and retrieval while supporting consistent day-to-day operations.

33 Custom Containers
4,000 kg Per Container
132 tonnes Total System Capacity
"In this project, the real ingenuity lies not in the LS Tower itself, but in the specially developed containers. They are precisely tailored to the rolls and allow for secure storage as well as easy loading and unloading via the integrated crane. This creates a comprehensive solution that combines storage, handling, and inventory control."
Michael Sänger
Michael Sänger
Head of Machine Sales, Dynamic Storage Systems
Dexion GmbH, Germany
CORE COMPONENTS

Engineered For Reliable Storage & Handling

Lift system

Vertical movement of containers within the tower for fast and controlled retrieval

Container system

Storage carriers designed for long materials such as bars, tubes and profiles

Operator interface

Defined transfer point for safe and ergonomic material handling

APPLICATIONS

Long Span Tower Applications

Where the LS Tower improves material flow in industrial environments

Application image

Metal & Material Production

High-throughput storage for distributors and processors handling mixed long-goods stock.

  • Steel & metal service centres: structured storage of bars, tubes and profiles
  • Aluminium & profile extrusion: mixed-alloy sections and window profiles in the same tower
  • Machining environments: fast access for cutting and production cells
  • Residue & remnant tracking: cut-offs booked back and findable via WMS

Precision & Production Supply

Automated, traceable material flow direct to the production line.

  • Aerospace & Precision Engineering: certified material with full container-level traceability
  • Just-in-time production supply: material delivered to the operator on demand
  • Central storage for long goods: high-density storage replacing cantilever racking
  • Outdoor & yard installations: fully rated for production-adjacent storage outside the hall
Application image

Plan Your Long Goods Storage

Get a layout tailored to your materials, space and production requirements.

REQUEST CONSULTATION
FEATURES & OPTIONS

Flexibility of the Long Span Tower

Adapt the system to your materials, space and workflows

Containers Engineered Around Your Process

Container dimensions, payload ratings and internal layouts - including custom supports, dividers and holding fixtures - are configured to the specific materials and process requirements of each installation.

  • Custom supports and dividers for bars, tubes, profiles and beams
  • Holding fixtures to prevent movement and protect finished surfaces
  • Open, covered or compartmentalised container designs
  • Mixed container heights within the same tower

Building-Integrated Material Flow

The LS Tower can be installed against an external wall, allowing material received from outside to be retrieved from inside. This eliminates inbound transport, reduces handling, and creates a link between delivery, storage, and production.

  • Material received from outside, retrieved from inside in one step
  • Eliminates separate inbound unloading and internal transport
  • Reduces forklift movements within the production hall
  • Improves safety by keeping heavy goods movement to a single transfer point

Flexible Configurations

Single-, double-, or multi-tower systems are configured to the available building height and required capacity. Scalable from semi-automated to fully integrated as your operation grows.

WMS & ERP Integration

Real-time inventory tracking, material location, and reorder management via standard WMS/ERP interfaces.

FULL LIFECYCLE PARTNER

One Partner From Concept to Operation

From planning and installation to service and optimisation

Layout based on material and workflow Indoor and outdoor implementation and connection to existing processes and IT Remote diagnostics and software updates available System health monitored without on-site visits

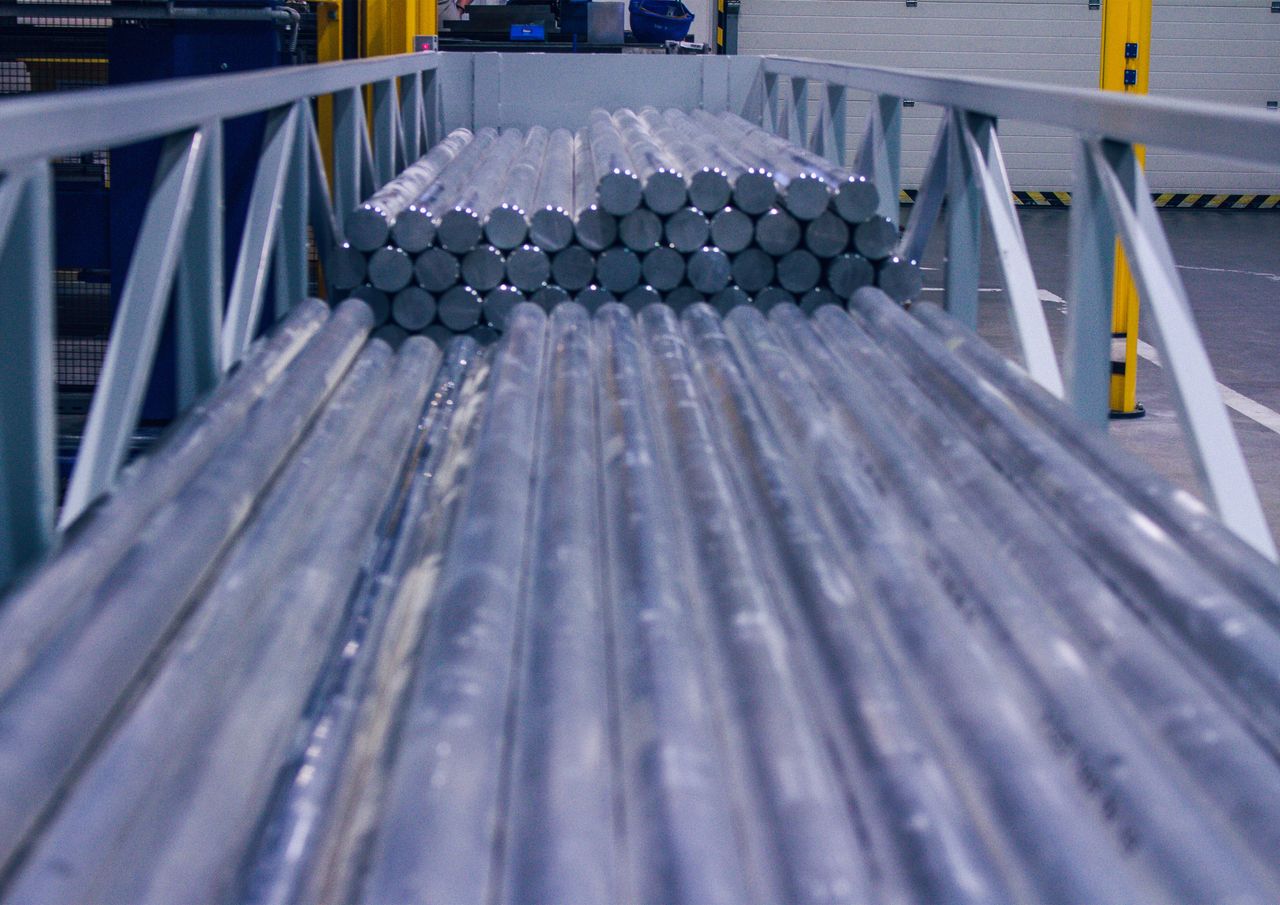

Kredit case study (kredit.cz/en/reference/long-span-tower-cz)
Cantilever racks eliminated · New production line enabled

Aerospace Components Manufacturer - Czech Republic

A manufacturer of high-precision components for the civil aviation sector needed floor space for a new production machine. Existing static cantilever racks occupied the adjacent storage hall.

An LS Double Tower replaced the cantilever racking and achieved 172 m² of organised storage capacity within a 50 m² floor footprint - freeing the full adjacent space for the new production machine without a building extension.

Mixed container heights (200 mm, 300 mm, 400 mm) and dual load capacities (1,500 kg and 3,000 kg) were specified to match the customer's exact material range. WMS with remote diagnostics was included as standard.

The overall system footprint, tower dimensions and container sizes are defined on a project-by-project basis to match the customer's available space, material characteristics and storage requirements.

172 m² Automated storage
50 m² Footprint used
3 Week Installation
LONG SPAN TOWER SPECS

Technical Specifications

Standardised data for planning, integration and system comparison

Material

  • Bars, pipes, profiles
  • Mixed materials supported within the same tower

Length

  • 3.3 m to 12.5 m
  • System height up to 12m

Load per container

  • 1,500 / 3,000 / 5,000 KG
  • Container dimensions: Length: 3,300 – 6,500 – 12,500 mm, Depth 600 – 1,200 mm, Height (usable) 200 – 700 mm

Configuration

  • Single, double, multi tower
  • Front, rear or side transfer points
  • WMS: optional (single/double), recommended for Multi
