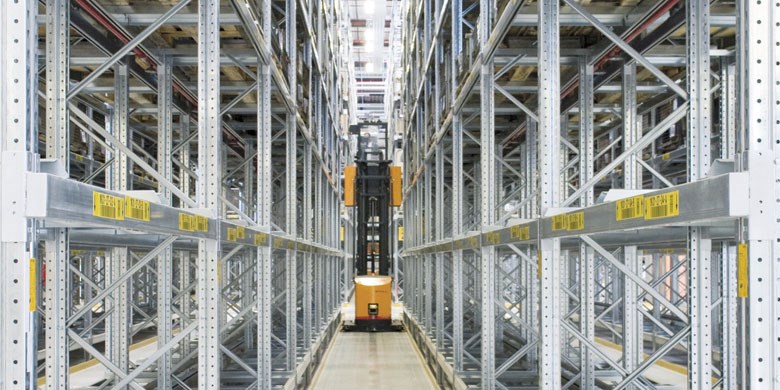

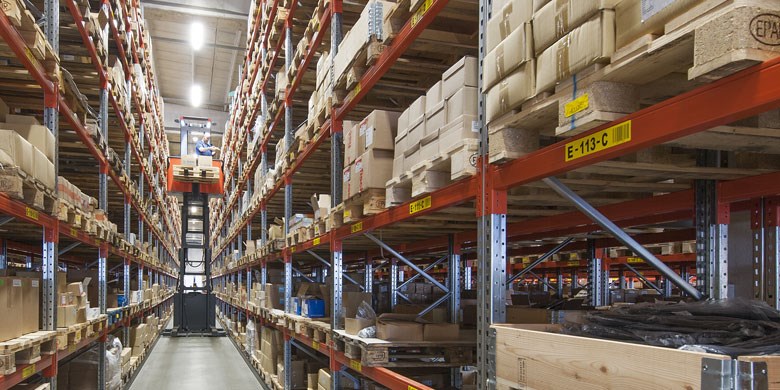

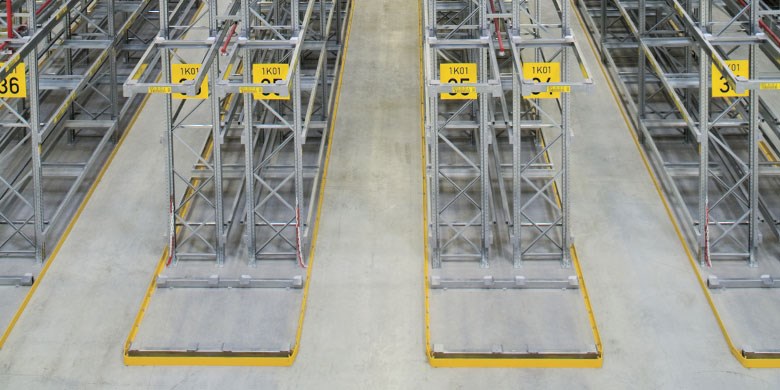

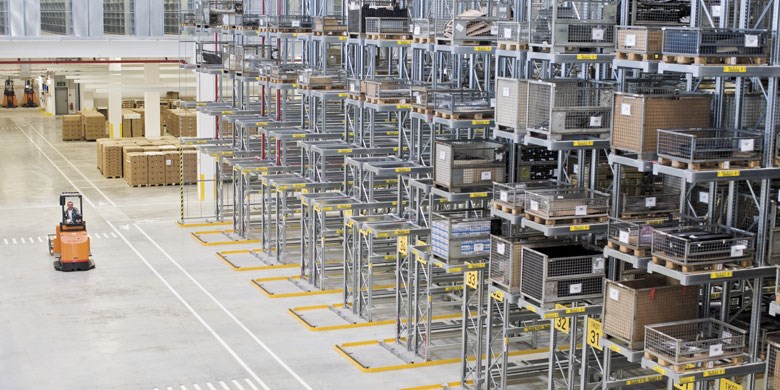

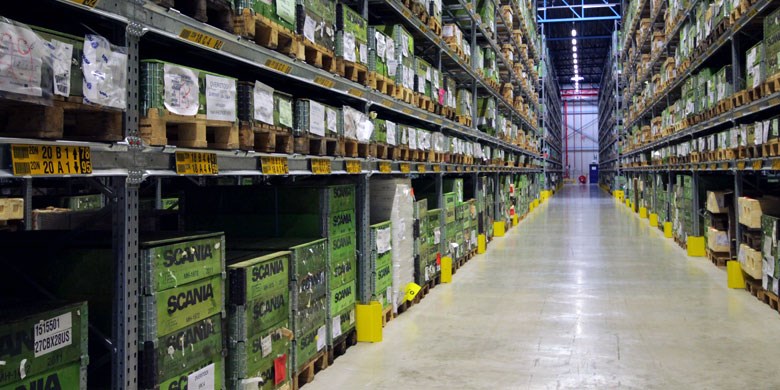

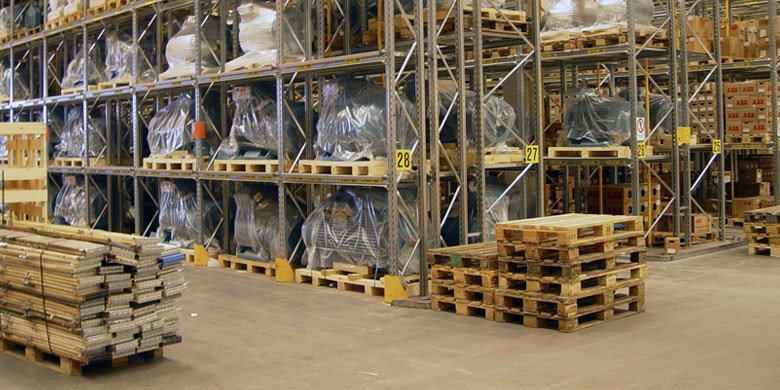

Narrow Aisle Pallet Racking is your ultimate space-saving option if your warehousing or storage floor space is limited. It gives your teams maximum storage capacity, and allows for quick order-picking and fast accessibility to every pallet.

Narrow Aisle Pallet Racking combines a wealth of features to enable the best possible use of space, and fast order-picking. Compact and efficient, it's a construction set-up used in a wide variety of industries where warehousing space is limited.

Varying shelving heights and depths, together with height-adjustable supporting beams assure maximum flexibility with man-down, high-lift stackers, or man-up-order-picking stackers. It's a system perfectly suited for convenient pallet storage and retrieval or for fast order-picking straight from the pallet. Handling equipment is often highly automated, and guided by wire or rail.

Narrow Aisle Pallet Racking offers the following features and benefits as standard:

  • Total and unrestricted accessibility to individual pallets
  • Optimum configuration for maximum storage, density and efficiency
  • Makes optimum use of any given floor area, storage space and warehouse height (up to 12m high)
  • Any additional costs offset by added value of improved space

Styles of beam:
Z shape, Closed Box Beams, and the environmentally friendly I-Beam.

Heights:
Up to 13.5 metres (in one piece)

Bay loads:
Up to 30000kg

Compartment loads:
Up to 5000kg

Compartment heights:
Up to 3500mm

Compartment widths:
Up to 5000mm
