Light & Medium Duty Cantilever

The Light & Medium Duty Cantilevers are ideal if you're having to store long and difficult items such as steel bars, piping, tubes or timber. Storage is horizontal so you can handle things manually or by forklift.

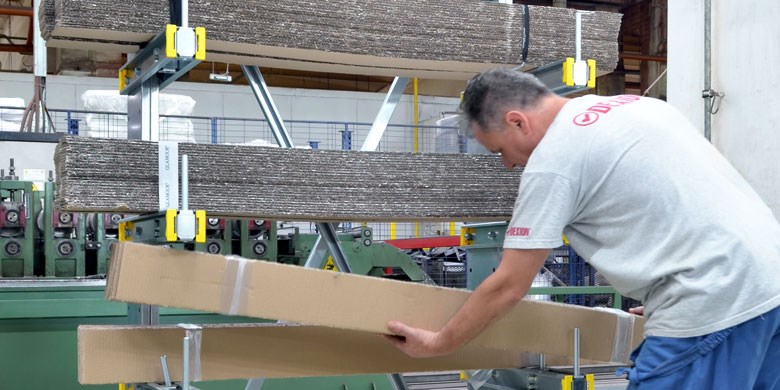

The Light Duty Cantilever is a versatile, modular system for storage of long goods. With no front uprights obstructing load-placing and retrieval, all levels are available for DIY, Manufacturing, Plumbing & Pipework, and workshop environments.

The Medium Duty Cantilever is positioned to bridge the gap between our Light Duty and our Heavy Duty option and is the preferred solution for storing long and large goods such as pipes, beams or pieces of furniture. The system is designed for medium weight goods, of large sizes which can be handled manually or by using a forklift truck.

Additional arms, uprights and braces can be added as storage requirements change, while single- and double-sided configurations provide maximum storage capacity on a single central column, or to fit flush against a wall.

All aspects of the Cantilever's design comply with recommendations of the FEM 10.2.09 normative and EN 1993-1-1:2006 Design of Steel Structures.

Both, Light & Medium Duty Cantilevers offer the following features and benefits as standard:

  • No limitation to products length
  • Suited to interior installations
  • Various arm lengths available
  • Easily adjustable arm distances
  • Fully modular, with extra sections available as you need them

These loads are calculated in accordance with the relevant standard FEM 10.2.09.

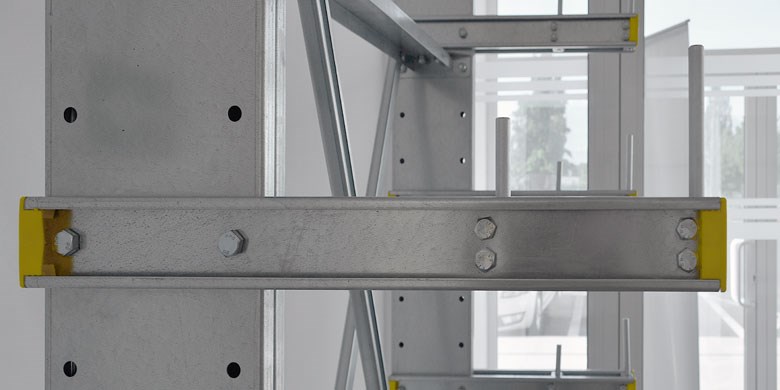

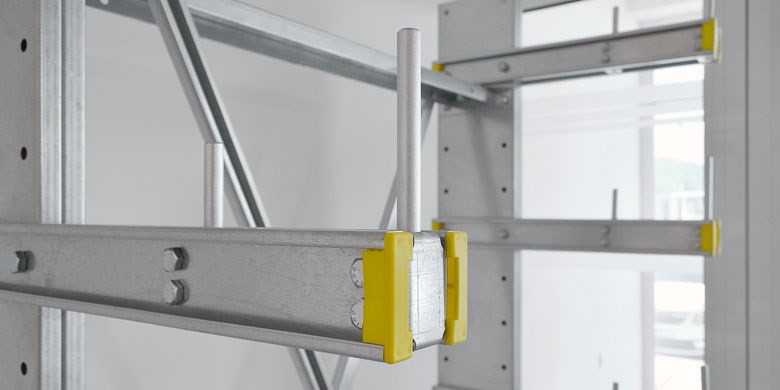

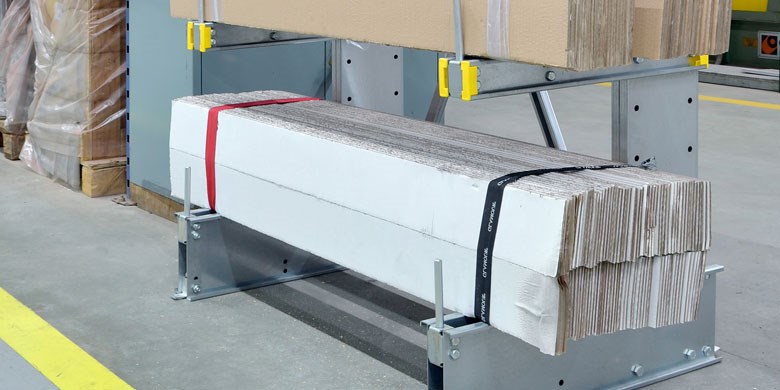

Light Duty Cantilever

  • System height: 2000mm and 2500mm
  • Arm lengths: 300mm / 400mm / 500mm / 600mm
  • Maximum load (per arm): 163kg – 400kg (dependent on layout)
  • Maximum load (per column): 1300kg – 4500kg (dependent on layout)
  • Upright offset: 1000mm / 1250mm / 1500mm / 1750mm / 2000mm
  • Standard finish: galvanized
  • Handled by: manual

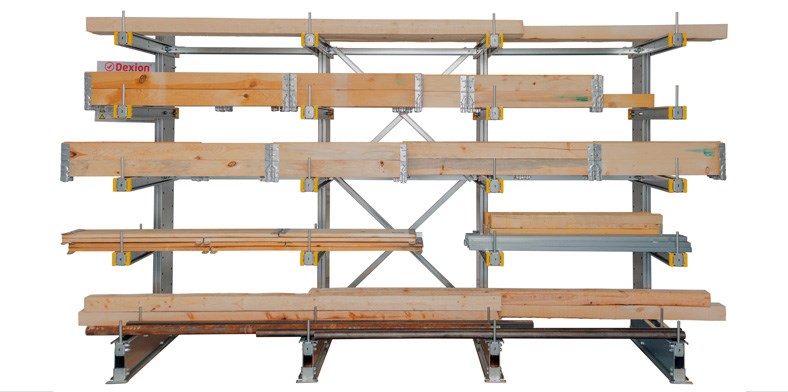

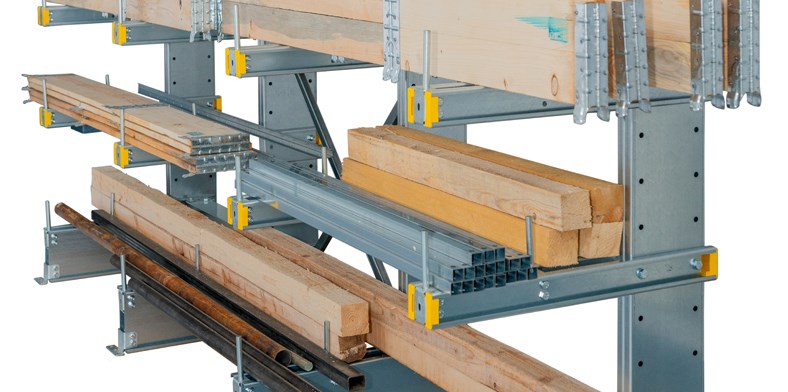

Medium Duty Cantilever

  • System height: 2000mm, 2500mm, 3000mm, 3500mm, 4000mm
  • Arm lengths: 400mm / 500mm / 600mm / 700mm / 800mm / 1000mm / 1200mm
  • Maximum load (per arm): 60kg – 1195kg (dependent on layout)
  • Maximum load (per column): 720kg – 4780kg (dependent on layout)
  • Upright offset: 500mm / 750mm / 1000mm / 1250mm / 1500mm
  • Standard finish: galvanized
  • Handled by: truck or manual
