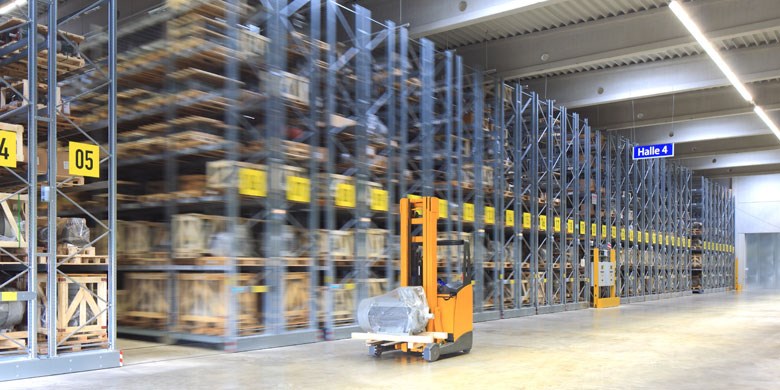

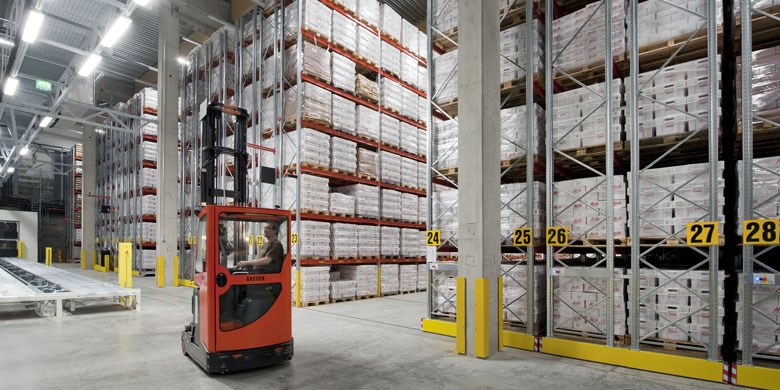

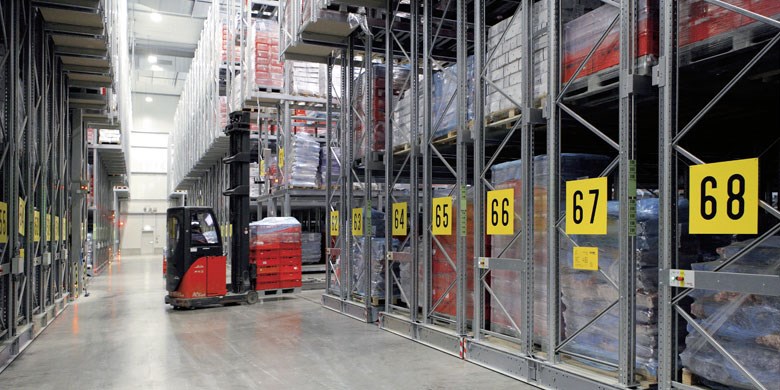

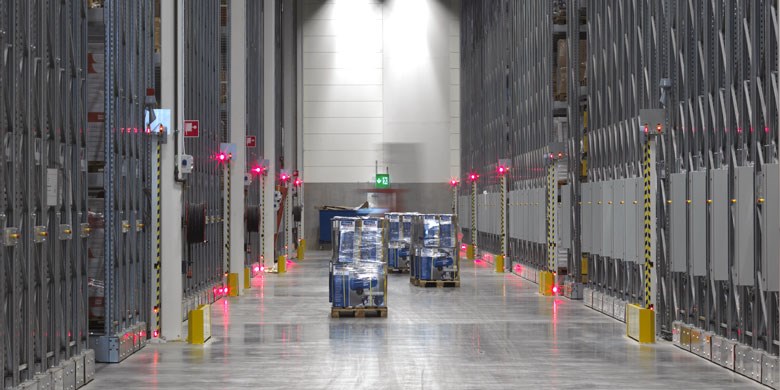

Mobile Racking (MOVO) is a dynamic solution providing up to double the storage capacity in the same area, of conventional pallet racking. Offering technical superiority and total flexibility, MOVO is suitable for every kind of stored goods, and has a wide range of accessories.

The electronically controlled MOVO high-load racking system runs on in-ground rails and can carry bay loads of up to 24 tons at racking heights of up to 12 meters. While state-of-the-art sensor technology and variable control options ensure ease of operation and absolute safety.

MOVO offers the following benefits as standard:

  • Save up to 50% of the space required by conventional pallet racking, and increase storage capacity by up to 80%
  • Cuts energy, operating and cleaning costs; allowing for a good ROI
  • 100% individual pallet access

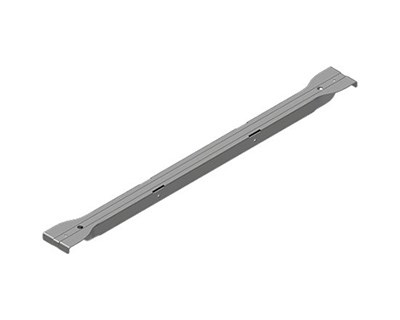

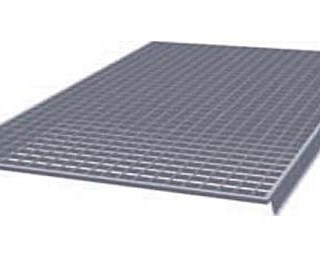

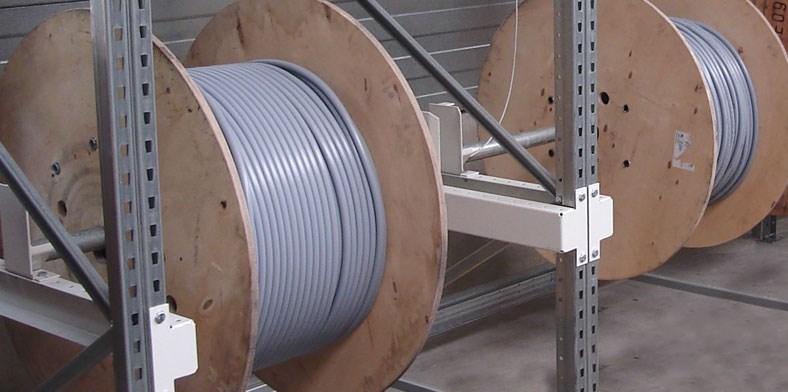

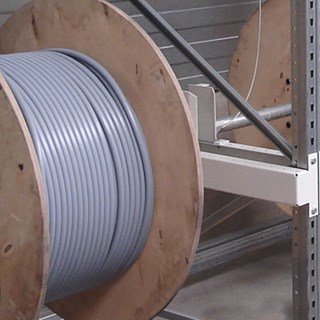

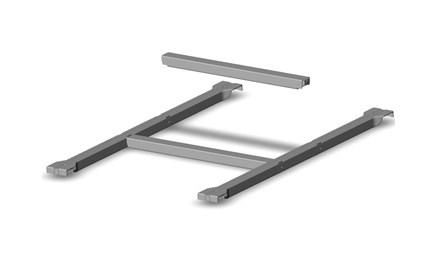

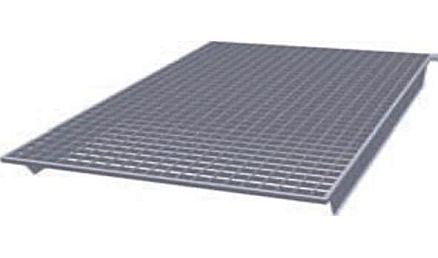

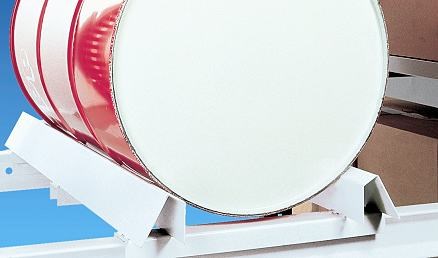

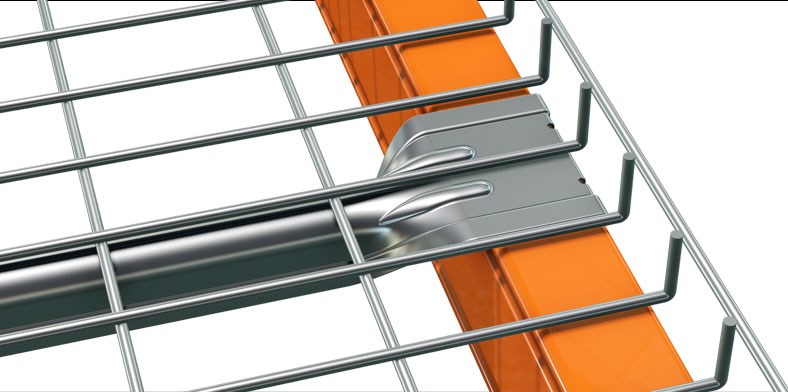

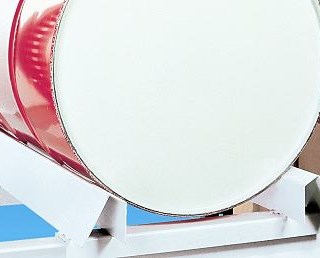

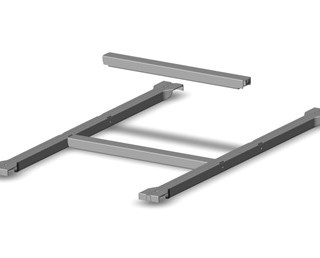

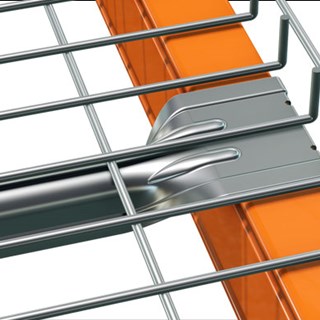

  • Wide variety of accessories
  • Suitable for any kind of warehouse goods
  • Guaranteed operational safety of -30° C; ideal for use in cold-storage rooms

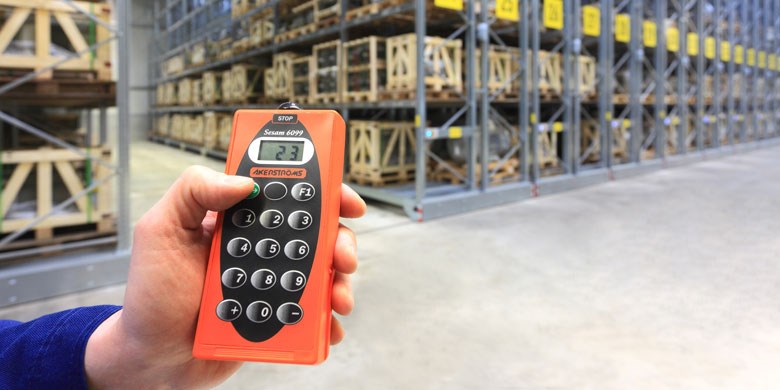

  • Latest PLC-technology for perfect support of optional functions, plus touch screen with clear graphical display for optimum visibility
  • Designed in accordance with the European Directive 2006/42/EG and DIN EN 15095

Standard dimensions & ranges:

  • Trolley length: up to 90m
  • Rack height: up to 12m
  • Bay width: up to 5.000mm
  • Operating temperature: -30°C to +40°C (optional down to -40°C)

Loading:

  • Bay load: up to 24 tons
  • Shelf load: up to 6 tons
  • Speed: up to 4.8 or 4.2 m/min
